Panel choice affects efficiency, price, appearance, and how much of your roof you'll need to cover to hit your energy goals. Homeowners comparing installation quotes often focus on wattage alone, missing the bigger picture: the type of panel determines how that wattage gets delivered.
This guide breaks down the main panel categories, the newer cell technologies installers mention in quotes, and the system factors that actually determine the right fit for your home.
Key Takeaways
- Three main panel types: monocrystalline, polycrystalline, and thin-film; cell tech includes PERC, TOPCon, HJT, N-type, and P-type
- Monocrystalline leads new residential installs for efficiency and a compact footprint
- Thin-film fits portable or flexible setups but needs more space for the same output
- Roof space, climate, shading, and budget matter more than the panel name on the spec sheet
- Compare full system proposals, not isolated panel prices
What Is a Solar Panel?
A solar panel, also called a photovoltaic (PV) module, is a group of solar cells wired together to convert sunlight into direct-current (DC) electricity. This happens through the photovoltaic effect: light hits a semiconductor material, transferring energy to electrons and generating current, according to the Department of Energy.
Inside each panel:
- Solar cells do the actual energy conversion
- Protective layers and glass shield the cells from weather
- Wiring carries the electricity out of the panel
- A frame holds everything together and allows mounting
A single panel doesn't power your home on its own. An inverter converts the DC electricity into alternating current (AC), the type your appliances actually use.
Several panels wired together form an array. Add an inverter, racking, monitoring equipment, and possibly batteries to build a complete solar system. Panels generate the power; the system delivers it to your outlets.
Why Is Solar Panel Type Important?
Panel type shapes several practical outcomes beyond the number printed on the spec sheet:
- Electricity per square foot: higher-efficiency panels need less roof space for the same output
- Equipment quantity: lower-efficiency panels require more units, more racking, more labor
- Appearance: black monocrystalline panels blend into a roofline differently than blue polycrystalline ones
- Heat performance: temperature coefficients vary by panel and affect summer output
- Durability and cost: materials and warranties differ across types
Here's a common mistake: comparing quotes by wattage alone. Two 400-watt panels can perform very differently depending on roof orientation, shading, inverter compatibility, and real-world temperature behavior. A panel rated at 400 watts in lab conditions won't hit that number on a 95°F rooftop in July.
Panel type doesn't determine whether your system is on-grid or off-grid. That's a function of your inverter setup, battery bank, and backup controls. A monocrystalline panel works equally well in either configuration.

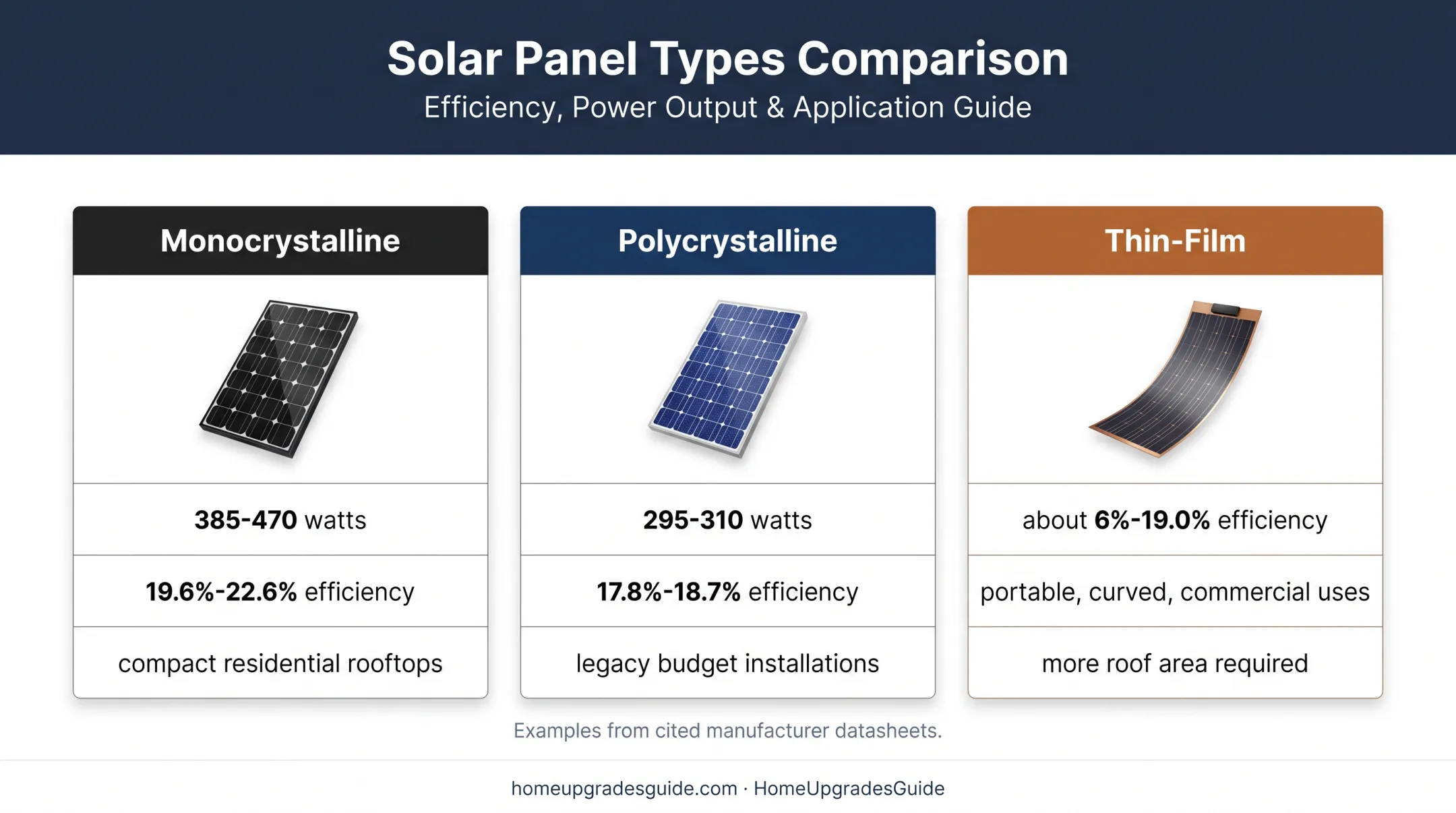

Types of Solar Panels
Three broad categories cover nearly every residential option: monocrystalline, polycrystalline, and thin-film. Terms like PERC, TOPCon, HJT, N-type, P-type, and bifacial describe additional technologies layered on top of these categories, not separate panel families.
There's no universal "best" panel. The right choice depends on your roof, your energy goals, and your budget.
Monocrystalline Solar Panels
Monocrystalline panels use wafers cut from a single silicon crystal. That uniform structure lets electrons move more freely, which generally supports stronger efficiency and power output in a compact panel footprint.
You'll recognize them by their black or dark-colored appearance. This aesthetic, combined with their efficiency, makes them the go-to recommendation for rooftops with limited usable space or households with high electricity demand.
Strengths:
- Efficient use of roof area, meaning fewer panels for the same output
- Broad availability from major manufacturers
- Mature, well-tested manufacturing process
- Compatible with modern cell designs like PERC, TOPCon, HJT, and IBC
Published examples show the range at play:
- Qcells Q.PEAK DUO BLK ML-G10+ (January 2023): 385-410 watts at 19.6%-20.9% efficiency, per the Qcells datasheet
- REC Alpha Pure-RX (HJT, September 2025): 450-470 watts at 21.6%-22.6% efficiency
Trade-offs: Monocrystalline panels often cost more than older alternatives. When comparing quotes, check more than the price tag:
- Temperature coefficient
- Degradation warranty
- Fire rating
- Wind rating
Polycrystalline Solar Panels
Polycrystalline panels are made by melting and solidifying multiple silicon crystal fragments together, rather than growing a single crystal. This creates a less uniform cell structure and the familiar blue or mottled appearance homeowners associate with older solar installs.
For years, polycrystalline was the budget-friendly entry point into solar. Lower efficiency meant needing more roof space for the same output, but the lower per-watt cost made that trade-off worthwhile for many buyers.
That math has shifted. According to EnergySage's panel guide, polycrystalline panels have largely been phased out of new US residential installations. Most major manufacturers now focus their residential lines on monocrystalline products.
If you already have a polycrystalline system:
- It's likely still performing within its warranted range
- Replacing functioning panels just because they're "outdated" rarely pencils out
- Focus any upgrade decision on actual production shortfalls, not panel category alone
An older datasheet example, Canadian Solar's KuPower CS3K-P from May 2020, shows 295-310 watts at 17.8%-18.7% efficiency. That's useful for understanding legacy installs, not for pricing a new quote.
Thin-Film Solar Panels
Thin-film panels deposit a very thin layer of photovoltaic material onto glass, metal, plastic, or another substrate. Common materials include amorphous silicon, cadmium telluride (CdTe), and copper indium gallium selenide (CIGS), per the Department of Energy.
Where thin-film shines:
- Low weight and flexibility for structures that can't support heavy racking
- Low-profile installation on curved or unconventional surfaces
- Portable applications, like RVs or off-grid cabins
- Some commercial rooftop installations with structural load limits
Where it falls short for most homes:
- Lower output per square foot than crystalline options
- Requires significantly more roof area for equivalent production
- Availability varies more than mainstream crystalline products
- Lifespan and warranty terms differ by chemistry
Not all thin-film is created equal:
- PowerFilm (amorphous silicon): about 6% cell efficiency for portable and embedded uses, with a 1-year materials warranty on foldable products
- First Solar Series 6 Plus (CdTe): 18.1%-19.0% module efficiency with a 30-year linear performance warranty
- MiaSole FLEX-03M (CIGS): bonds directly to approved surfaces without conventional racking; aperture efficiency 14.8%-18.3%
That spread shows why lumping "thin-film" into one bucket misleads homeowners. For most residential rooftops, thin-film remains a niche choice rather than the default recommendation.
PERC, TOPCon, HJT, N-Type, and P-Type Technologies
These terms get thrown around in quotes like they're competing panel categories. They're not. PERC, TOPCon, and HJT describe cell architecture. N-type and P-type describe silicon doping, meaning the chemical treatment that gives silicon its electrical properties.
A single panel can be monocrystalline, N-type, TOPCon, and bifacial all at once.
What each architecture does:
- PERC (Passivated Emitter and Rear Contact) adds a rear layer that reflects unused light back into the cell, reducing energy loss
- TOPCon (Tunnel Oxide Passivated Contact) uses an ultrathin oxide layer to reduce electron recombination, improving efficiency
- HJT (Heterojunction Technology) combines crystalline and amorphous silicon layers for better temperature performance
N-type vs. P-type: Neither is automatically "better."
N-type wafers, doped with phosphorus, tend to show stronger resistance to certain degradation mechanisms and often pair with premium architectures like HJT. P-type wafers, doped with boron, have historically been more common and more affordable.
Compare manufacturer specs, temperature coefficients, and degradation warranties rather than assuming the newer label wins.
Bifacial panels capture light from both the front and rear side. Their added value depends heavily on mounting height, surface reflectivity below the array, and whether shading blocks rear-side light. A bifacial panel mounted low over a dark roof won't deliver much extra, according to NREL's bifacial research.
How to Choose the Right Type of Solar Panel
The right panel is the one that fits your roof and budget at a reasonable lifetime cost, not necessarily the one with the highest efficiency rating on the box.
Roof Space, Orientation, and Climate
Limited usable roof area raises the value of high-efficiency panels since every square foot has to work harder. A larger, unshaded roof gives you more flexibility to choose a less expensive option.
Factors to review with your installer:
- Roof direction (south-facing typically performs best in the US) and pitch
- Obstructions like chimneys, vents, or skylights
- Shading patterns, including trees that will grow taller over time
- Local climate stress: heat, wind, hail, snow load, or wildfire exposure where relevant
- The panel's certified ratings for your specific climate conditions
Energy Goals and System Configuration
Your current electricity use matters, but so does what's coming. Planning an EV purchase or a heat pump upgrade in the next few years? Factor that future load into system sizing now, not after installation.

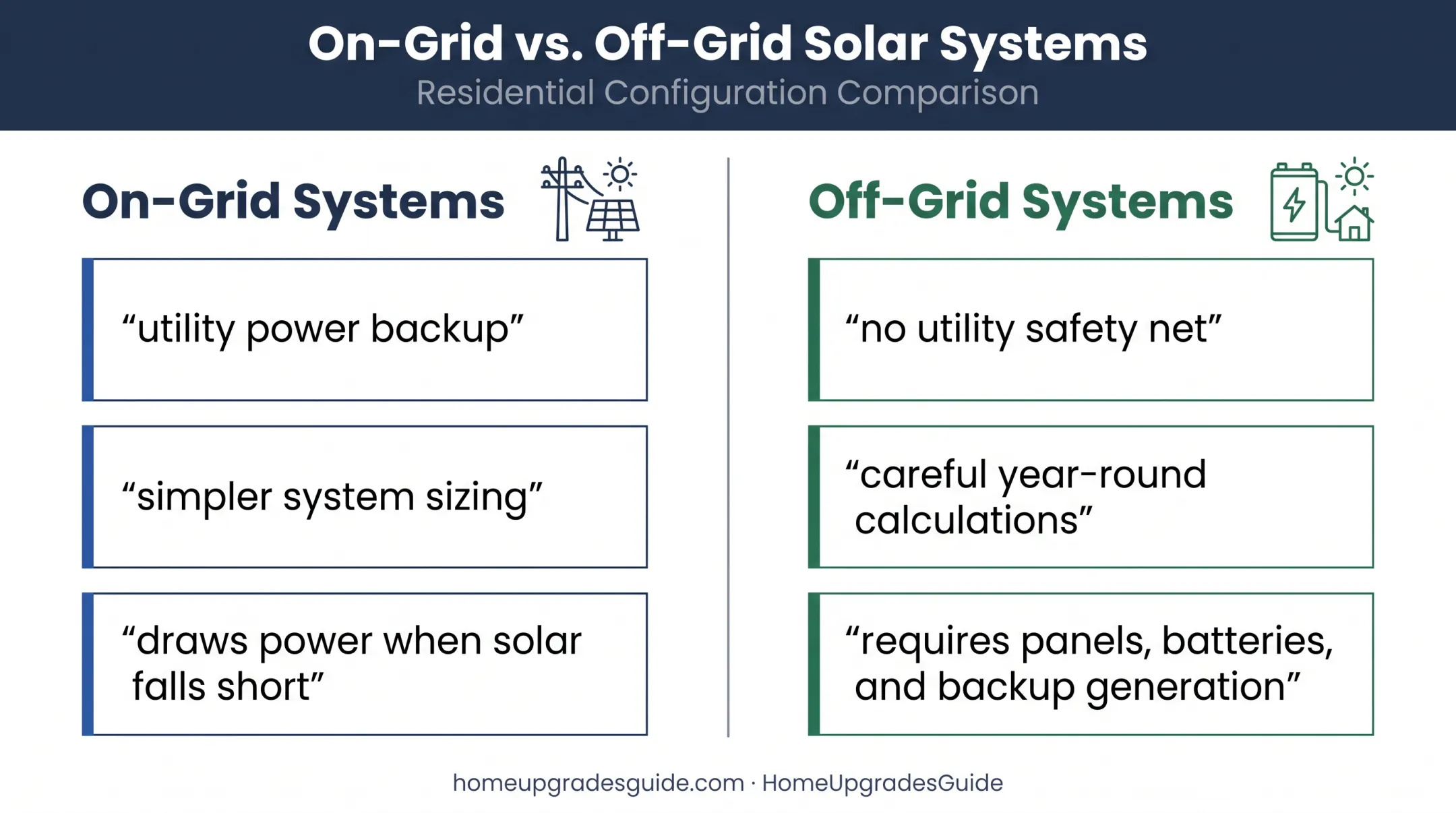

Backup-power expectations and battery plans also shape the design:
- On-grid systems can draw utility power whenever solar production falls short, simplifying sizing
- Off-grid systems require careful calculation of panels, battery capacity, and backup generation to cover year-round needs without a utility safety net
Budget and Lifetime Value
Compare installed cost, not just equipment price. The median US residential solar installation price sat at $2.48 per watt in the first half of 2025, holding steady from the prior period, according to EnergySage's marketplace report. That figure covers the full install, not panels alone.
Factor in expected production, maintenance needs, and degradation over your planned ownership period. Also research current incentives separately for your situation. Federal, state, and utility programs change frequently and don't apply uniformly to every homeowner or equipment type.
Product Quality and Installer Design
Before signing anything, compare:
- Product warranty length versus performance warranty length (these are separate coverages)
- Warranted degradation schedule, meaning how much output loss is guaranteed over time
- Certifications, fire rating, and wind/hail testing results
- Monitoring capabilities and the manufacturer's service process
A professional site assessment with an accurate production model beats picking a panel by color or nameplate wattage every time. This is where HomeUpgradesGuide's quote-matching process helps: homeowners can request free project quotes and compare vetted local contractor matches, deciding for themselves whom to contact and when.
What to Check Before Finalising a Type of Solar Panel
What to Check Before Finalizing a Type of Solar Panel
A few final checks can save you from an expensive mismatch:
- Don't chase the highest efficiency automatically. If your roof space, budget, or inverter compatibility doesn't justify the added cost, a mid-tier panel may deliver better value.
- Request an itemized proposal, not just a panel price. It should cover design, racking, inverter, electrical work, permits, labor, monitoring, batteries, and warranties.
- Verify fit for your roof and region. Confirm the panel and installer suit your roof structure, local weather, utility interconnection rules, and applicable building or fire codes.
- Ask the hard questions: How does the system perform under shade and high heat? How is degradation measured? Who handles warranty claims if something fails?
- Watch for red flags. Unusually high production estimates, vague savings claims, pressure to sign quickly, and unclear warranty language are all reasons to get a second opinion.
HomeUpgradesGuide matches homeowners with vetted local solar professionals using just an address, making it easier to compare these details across multiple proposals before committing.
Conclusion
Monocrystalline, polycrystalline, thin-film, and the newer cell technologies layered within them each serve different priorities. For most US homeowners, monocrystalline remains the practical default, but your roof, energy use, budget, and system design ultimately decide what's right.
Comparing complete proposals from qualified contractors, rather than fixating on panel type alone, leads to better outcomes. Before signing anything, confirm current specifications, incentives, warranties, and local requirements with your installer.
Frequently Asked Questions
What are the four types of solar panels?
Most guides identify three broad categories: monocrystalline, polycrystalline, and thin-film. Some count a modern crystalline technology like PERC as a fourth "type," though it's technically a cell architecture, not a separate material category.
Which type of solar panel is best for a home?
Monocrystalline panels are commonly recommended for residential rooftops due to their efficiency and compact footprint. That said, roof space, budget, climate, shading, and installer design can all shift the right recommendation for your specific home.
Which solar panel is best for home on grid or off grid?
Panel type alone doesn't determine grid configuration. On-grid systems rely on utility power as backup, simplifying design, while off-grid systems need careful battery, inverter, and backup capacity planning regardless of panel type chosen.
Which is better, N-type or P-type?
Neither is universally better. N-type often resists heat and degradation better, while P-type is often cheaper and more available. Compare manufacturer specs and warranties before deciding.
What size solar system do I need for my home?
Sizing depends on your electricity consumption, roof production potential, sun exposure, shading, utility rules, future power needs, and battery goals. A professional production estimate, tailored to your address, gives the most reliable answer.
Can a 3kW solar panel run AC?
A 3kW figure typically describes a whole system, not a single panel. Whether it can run an air conditioner depends on the unit's startup and running wattage, available sunlight, inverter capacity, and any battery or grid support in place.
