Introduction
Installing solar panels on a tile roof looks simple from the ground. It isn't.
Tile roofs combine fragile materials, structural attachment points, waterproofing layers, electrical wiring, and strict fall-protection rules in one job. Rushing any part of that mix creates problems.
OSHA requires fall protection for workers exposed to drops of 6 feet or more, and solar crews routinely work around roof edges, skylights, and reduced walking space, according to OSHA's solar guidance.
Qualified solar installers and roofing professionals need to assess tile roofs before any panel goes up, especially where tiles must be removed, replaced, or flashed.
When installation gets rushed, the damage shows up later: cracked tiles, hidden leaks, loose mounts, underperforming systems, and warranty disputes nobody wants to inherit.
This guide walks through roof readiness, tile-safe mounting, installation stages, validation checks, common failure points, and the questions worth asking before hiring anyone.
Key Takeaways
- Most sound tile roofs can hold conventional panels if structure, underlayment, tile condition, and code check out
- Tile-specific mounts and flashing beat forcing standard hardware onto brittle materials
- Pre-existing leaks, pest damage, or deterioration need fixing before panels go on
- Inspection, electrical testing, permits, and final docs complete a proper install
Installation Guide for Solar Panels on Tile Roofs
A tile-roof solar install generally runs through four stages: evaluating the roof, preparing and protecting the tile surface, installing watertight attachments and panels, then completing electrical integration and validation.
Expect more planning time here than with asphalt shingles. Timelines shift based on roof condition, system size, tile type, roof access, and how fast your jurisdiction handles permits and inspections.
Prerequisites and Safety Considerations
Before anyone touches a tile, the roof itself needs a hard look.
Site and roof readiness checks should cover:
- Roof deck, framing, underlayment, flashing, and attic for leaks, rot, movement, or pest damage
- Tile type and profile, roof slope, usable planes, shading, obstructions, and rafter or truss locations
- Electrical service capacity, inverter design, wiring route, grounding, and available interconnection headroom
- Applicable building, electrical, fire, wind, and permit requirements for your jurisdiction
Structural adequacy isn't optional. The 2024 International Residential Code requires the roof and its PV supports to carry all imposed loads, and it sets specific layout rules installers can't skip — at least two 36-inch-wide access pathways on separate roof planes, plus ridge setbacks of 18 to 36 inches depending on array coverage, according to the 2024 IRC requirements.
Work should pause if any of these show up:
- Active roof leaks
- Unsafe or unstable roof access
- Loose or unstable tiles
- Inadequate structural support
- Severely degraded underlayment
- Unresolved electrical-service limitations
None of these are DIY fixes. They need a licensed roofer or electrician before solar planning continues.
Tools and Parts Required
Homeowners should know what's going on the roof, even though installation stays with professionals.
System components typically include:
- Solar modules and inverter or microinverter equipment
- Tile-compatible mounts, hooks, or base plates
- Flashing or tile-replacement flashings
- Rails or rail-free mounting hardware, plus clamps
- Conduit, wiring, grounding, and bonding equipment
- Replacement tiles
Professional-only equipment includes:
- Roof-safety and fall-protection gear
- Tile-handling or cutting tools (where manufacturer-approved)
- Torque-controlled fastening tools
- Electrical testing equipment
- Tools for locating structural attachment points
Here's the part that trips people up: mounting hardware, flashing, clamps, and sealants aren't interchangeable. A Quick Mount flashing system, an IronRidge hook, and an EcoFasten base plate each have different fastener types, drill specs, and sealing procedures. Mixing brands or skipping manufacturer instructions voids warranties and invites leaks.

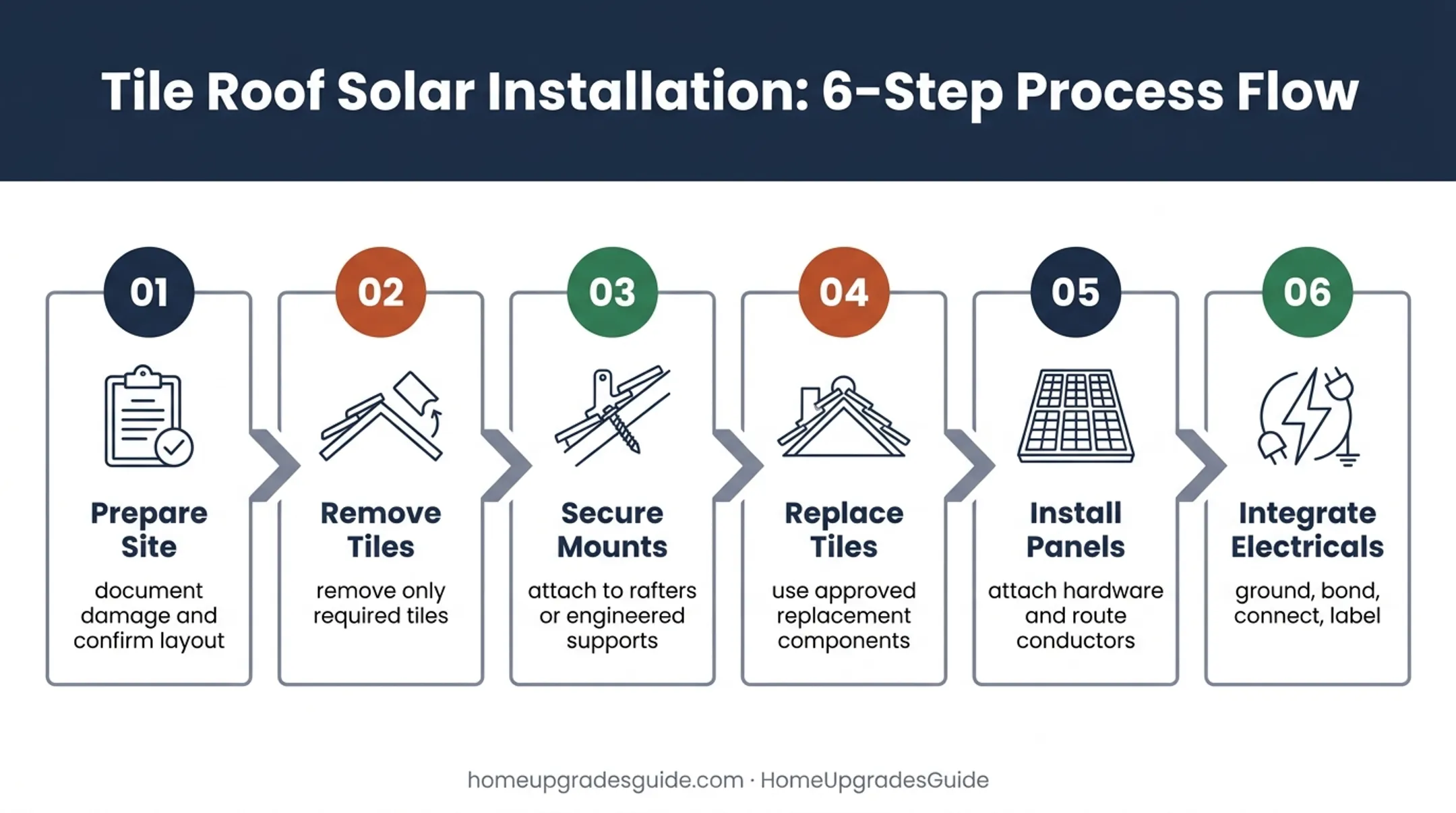

How to Install Solar Panels on a Tile Roof: Step-by-Step
Sequence matters here. Skipping steps around tile removal, flashing, or attachment creates leaks that show up weeks or months later — not on installation day.
- Prepare the site. Document existing tile damage, stage replacement tiles, set up safe roof access, and confirm the final array layout before disturbing anything.
- Remove only the tiles required for each attachment point. Adjacent tiles and underlayment should stay untouched. The exact method depends on tile type and mounting system.
- Secure mounting points to rafters or properly engineered supports, then install the specified flashing or tile-replacement component so water routes away from the penetration.
- Reinstall or replace tiles only within the approved system's design. Indiscriminate drilling or improvised sealing compromises drainage.
- Install rails or rail-free hardware, attach panels with correctly positioned clamps, and route conductors while keeping clearances for ventilation, fire access, and drainage.
- Complete electrical integration — grounding, bonding, inverter connections, disconnects, labeling, and conduit — through a licensed electrician or qualified solar professional.
Manufacturer procedures vary by brand. A Quick Mount tile-replacement system, for instance, calls for underlayment-level waterproofing plus a post seal and EPDM counter-flashing collar — details that differ from an EcoFasten or IronRidge hook-based system.
Post-Installation Checks and Validation
Once panels are up, validation separates a finished job from a problem waiting to happen.
Visual and structural review should confirm:
- Panels and attachments are aligned and fasteners secure
- Flashing is seated correctly
- Tiles are intact or properly replaced
- Drainage paths remain open
- No loose materials remain on the roof
Electrical and system checks should include:
- Polarity and grounding/bonding verification
- Inverter status and monitoring communication
- Disconnect operation and labeling
- Utility or inspector sign-off where required
Commissioning checks like these — insulation integrity, termination torque, string voltage and current — are standard practice for qualified installers, per NABCEP's resource guide.
Signs of a correct install: stable panels, orderly wiring, intact tiles, no new moisture, normal monitoring data, and no unexplained alerts.
Skipping this step turns a minor flashing or wiring defect into a delayed leak or costly rework down the line.

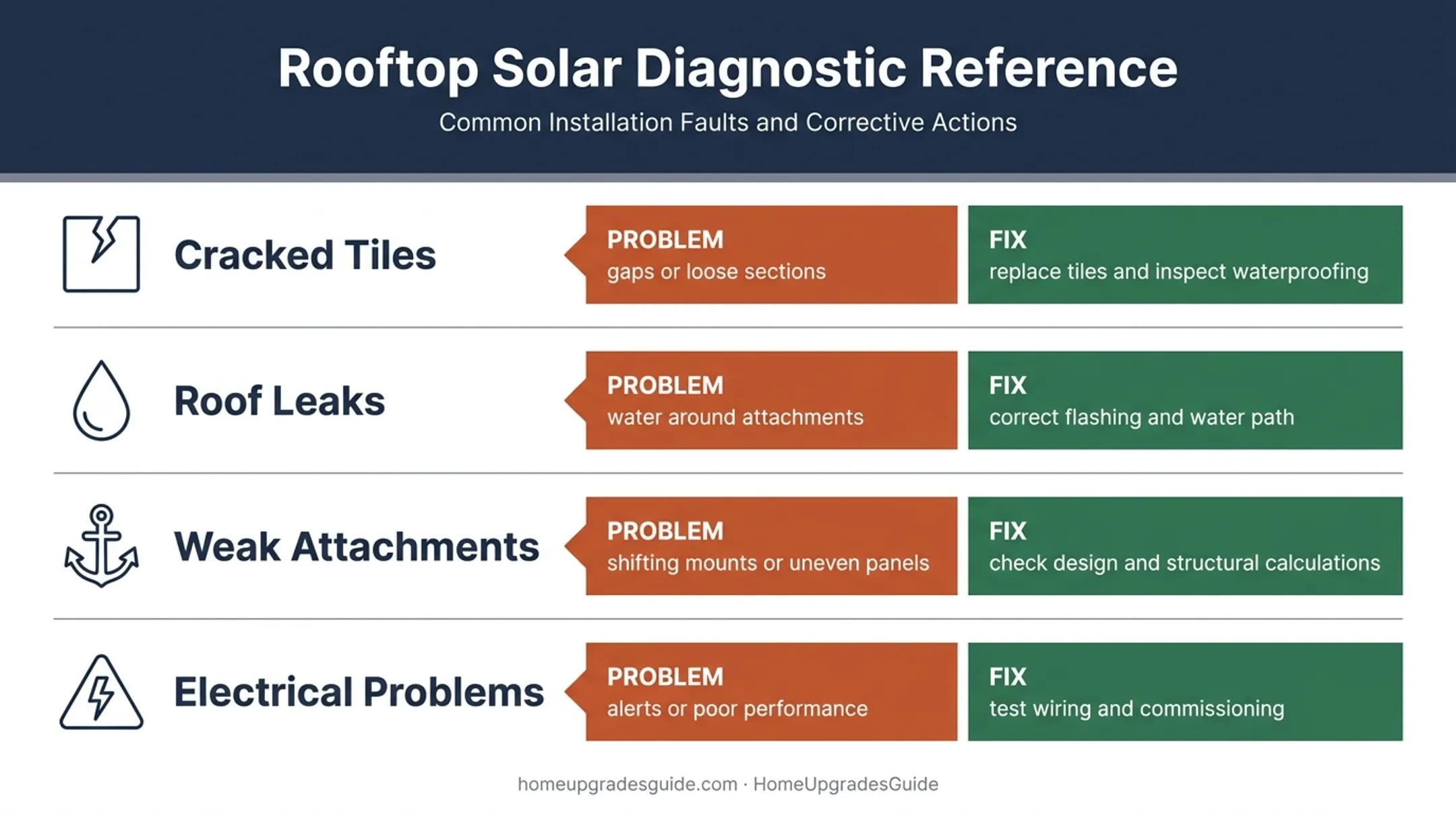

Common Installation Problems and Fixes
Most tile-roof solar problems trace back to one mistake: treating a tile roof like an asphalt-shingle roof instead of adapting the attachment and waterproofing approach.
Issue 1: Cracked, Displaced, or Missing Tiles
Problem: Tiles break during access, removal, or panel installation, leaving gaps or loose sections.
Likely cause: Excessive foot traffic, poor handling, tool impact, brittle or pre-damaged tiles, or not enough replacement stock on hand.
Fix: Stop work in the affected area, swap in compatible replacement tiles, inspect the underlying waterproofing, and document which damage existed before installation.
Issue 2: Roof Leaks Around Solar Attachments
Problem: Water enters around a penetration or travels under poorly fitted tiles and flashing.
Likely cause: Incompatible flashing, poor placement over the drainage path, deteriorated underlayment, or an improvised patch relying too heavily on sealant.
Fix: Have a qualified roofer or solar pro trace the water path, correct the flashing-to-underlayment interface, replace affected tiles, and follow the manufacturer-approved repair — not a quick caulk job.
Issue 3: Weak or Poorly Positioned Attachments
Problem: Mounts shift, rails don't align, panels sit unevenly, or the array shows unacceptable uplift.
Likely cause: Fasteners missing suitable structural members, incorrect spacing, or ignoring local wind and snow load requirements.
Fix: Pause installation and compare the work against the stamped design, manufacturer instructions, and structural calculations before continuing.
Issue 4: Electrical or Monitoring Problems After Installation
Problem: The system underperforms, throws alerts, loses monitoring communication, or fails inspection.
Likely cause: Wiring damage, incorrect connections, inadequate grounding, shading overlooked during design, or incomplete commissioning.
Fix: Keep the system offline until a licensed electrician or qualified solar tech tests the installation, fixes the fault, and logs commissioning results.
Pro Tips for Installing Solar Panels on Tile Roofs
A little diligence upfront saves a lot of grief later.
- Schedule the roof assessment before accepting any proposal. Ask whether the installer checks the underlayment, attic, structural attachment points, and tile availability, not just the visible surface.
- Ask each contractor to explain their tile-handling method. Does the design use tile-replacement flashings, hooks, base plates, or rails? Vague answers are a red flag.
- Request a written scope covering responsibility for broken tiles, pre-existing leaks, roof repairs, permits, inspections, electrical upgrades, and workmanship warranties.
- Compare quotes on more than price. Weigh tile-roof experience, licensing, equipment compatibility, schedule, and references from similar jobs.
- Keep records of roof photos, the approved layout, equipment specs, permits, inspection results, and warranty documents for future roof maintenance.
Finding contractors who actually have tile-roof experience is half the battle. HomeUpgradesGuide matches homeowners with vetted local solar professionals through a short, address-based quote request: homeowners decide who to talk to and when, with no resold lists or surprise calls.
Conclusion
Solar panels work on plenty of tile roofs, but the outcome hinges on a careful roof evaluation, tile-safe handling, watertight attachments, and electrical work that actually gets validated — not assumed.
Fix roof problems first. Compare contractors who can explain their tile-handling method in plain terms. Steer clear of anyone proposing improvised tile cutting or unclear responsibility for leaks.
A carefully planned installation protects the roof and the system's performance for decades, not just through the first inspection. If you're ready to compare quotes, HomeUpgradesGuide's four-step process connects homeowners with vetted local solar contractors based on their address, so you can evaluate real options before committing to anyone.
Frequently Asked Questions
Can solar panels be installed on a tile roof?
Yes, many sound clay or concrete tile roofs can support conventional solar panels. A qualified professional needs to confirm structural capacity, tile condition, underlayment quality, and attachment compatibility first.
What roofs can you not put solar panels on?
Roofs with active leaks, severe deterioration, unsafe structure, poor solar exposure, or insufficient electrical capacity may need repairs or redesign before installation. A professional assessment matters more than the roofing material alone.
How much does it cost to put solar panels on a 2,000 sq ft house?
Cost depends on system size, electricity use, tile condition, mounting complexity, equipment, permits, labor, and incentives, not roof square footage alone. EnergySage's 2025 report found a median quoted price of $2.50 per watt in late 2024, a national benchmark rather than a tile-specific figure. Clay tile installs often run higher due to extra labor and tile fragility.
