The honest answer is "it depends," but not in a vague way. The number of panels you need comes down to five specific inputs: your pump's actual wattage, how many hours it runs, your local peak sun hours, your panel output, and how much energy gets lost along the way. Add in whether the pump needs to run after dark, and you've got everything required to build a real estimate.
This guide walks through that calculation step by step. Treat the final numbers as a solid starting point, not a finished design. A licensed solar installer or electrician should confirm the system before you connect anything to an existing AC pump.
Key Takeaways
- Start with daily pump energy use: running watts multiplied by daily operating hours.
- Compare that kWh need to panel output using local peak sun hours and efficiency losses.
- Round the final panel count up, then check inverter, wiring, and pump specs.
- Variable-speed pumps and daytime-only schedules can shrink the array size you need.
- Night or cloudy-day filtration usually needs batteries or a grid connection.
Understand Your Pool Pump's Energy Use
Horsepower is the number printed on most pump labels, but it's a mechanical rating, not an electrical one. Running watts is what actually matters for solar sizing. A 2 HP motor doesn't pull a fixed, universal number of watts; it depends on the specific motor, speed setting, and plumbing resistance.
Finding Your Pump's Real Wattage
Check the nameplate or spec sheet first. If you only see voltage and amperage, use this relationship:
Watts = Volts × Amps
So a pump rated at 230V and 11.5A draws roughly 2,645 watts at that setting, though real-world draw can run lower depending on load. Don't assume horsepower alone tells you this number.
Runtime and Pump Type Both Matter
A pump that runs entirely during daylight hours is a much simpler solar target than one that needs to run overnight. Runtime and wattage multiply together, so cutting either one lowers your daily energy use.
Pump type changes the math too:
- Single-speed pumps run at one fixed (usually high) wattage for the entire cycle.
- Dual-speed pumps offer a lower-watt setting for routine filtration and a higher one for vacuuming or heavy debris.
- Variable-speed pumps can run filtration at very low wattage, reserving higher speeds only for specific tasks.

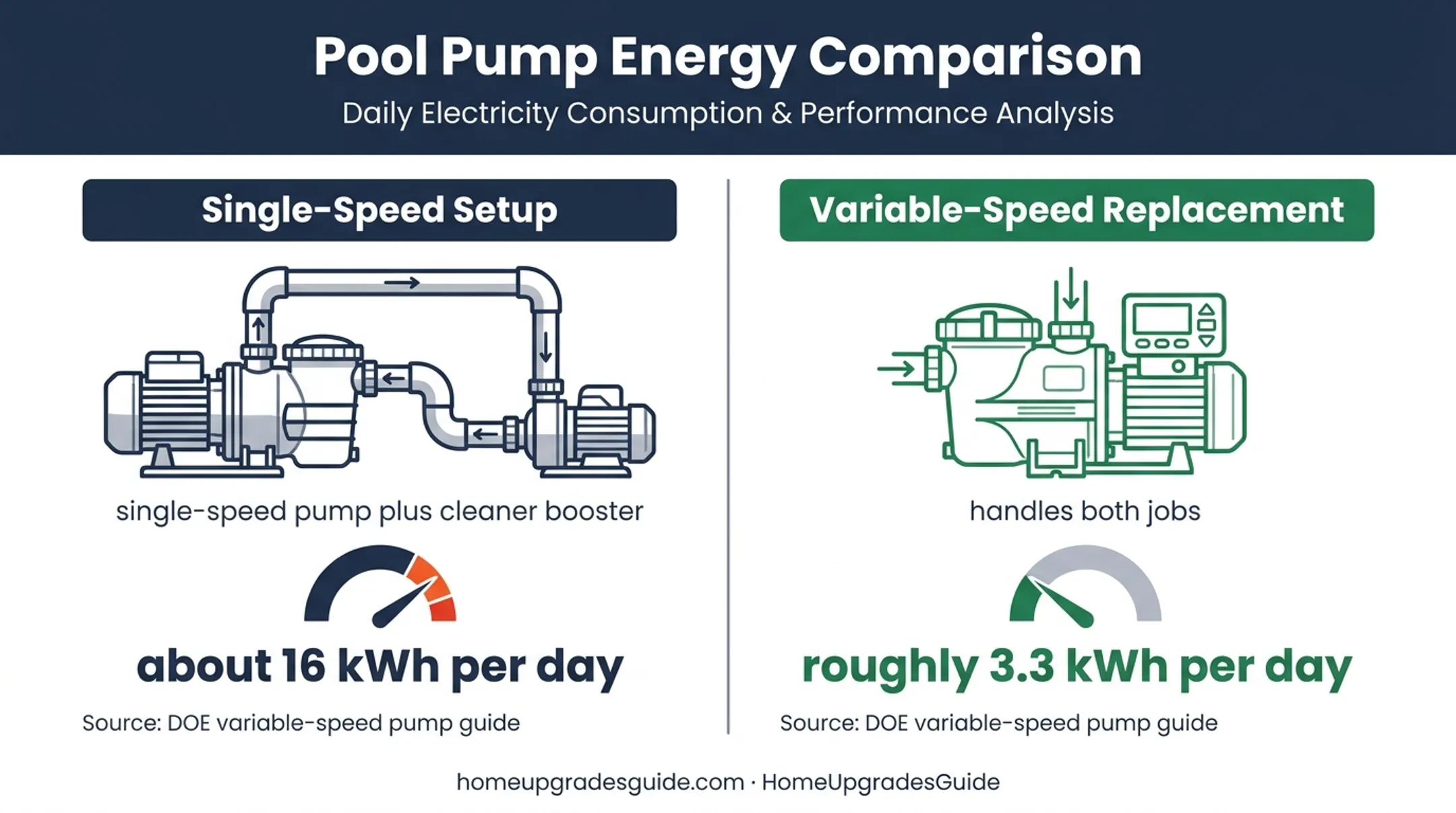

DOE's variable-speed pump guide documents a retrofit case where a single-speed pump and separate cleaner-booster pump together used about 16 kWh per day, compared to roughly 3.3 kWh per day for a variable-speed replacement handling both jobs. That's one documented case, not a universal savings percentage. Your actual numbers depend on your pool, plumbing, and schedule.
For runtime itself, don't guess. Pool and Hot Tub Alliance standards and DOE's Energy Saver guidance both point toward testing your filtration schedule in increments (often starting around six hours and adjusting until the water stays clear) rather than assuming a fixed number applies to every pool.

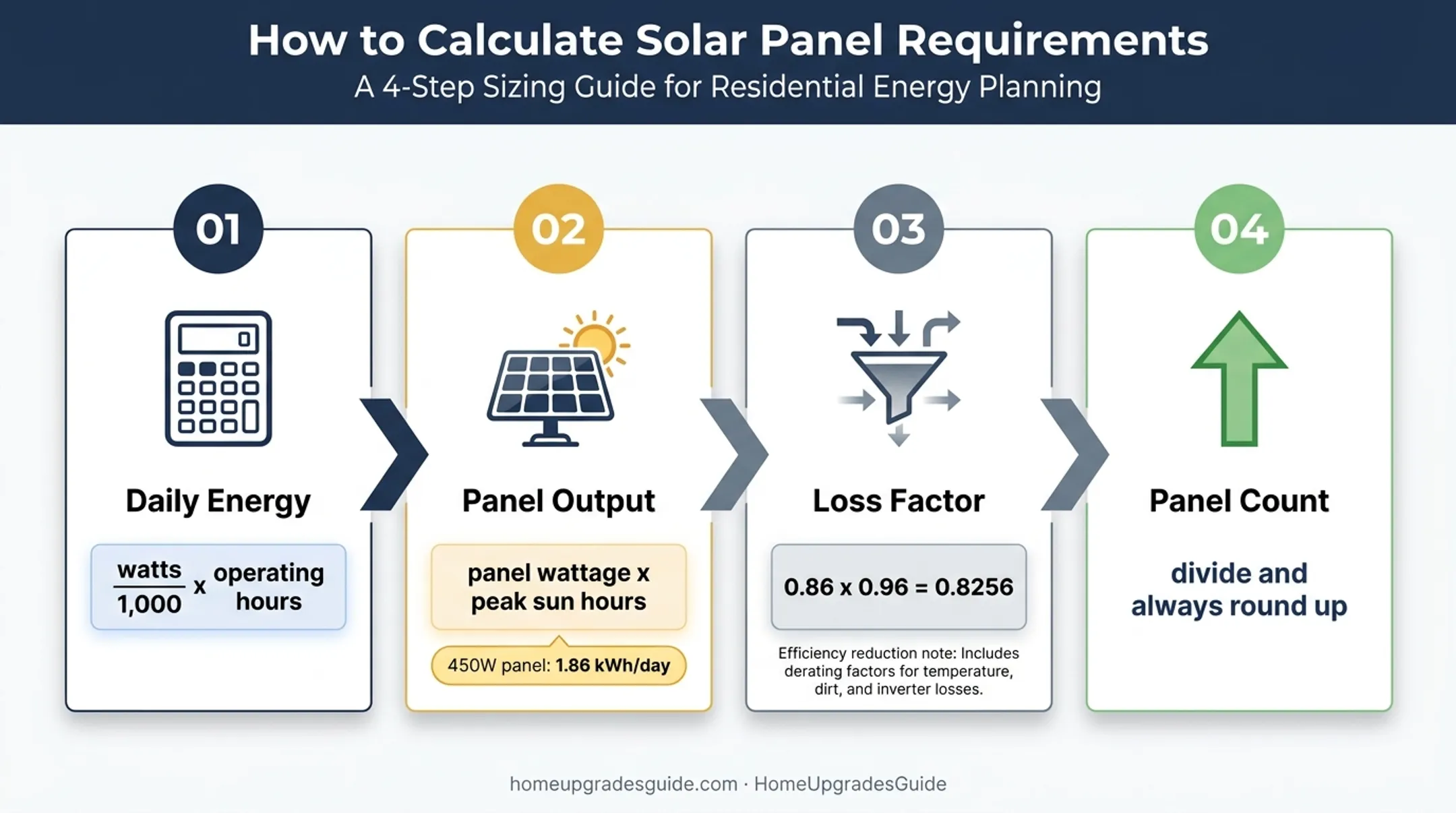

Calculate How Many Solar Panels You Need
Once you know your pump's running watts and daily hours, the math has four steps.
Step 1: Find daily energy use
Daily energy (kWh) = running watts ÷ 1,000 × daily operating hours
Example: a 1,000-watt pump running 8 hours a day uses 8 kWh per day.
Step 2: Estimate daily output per panel
Panel output depends on wattage, your local peak sun hours, and system losses. Rather than guessing, use NREL's PVWatts tool, which models site-specific irradiance, tilt, and orientation instead of a flat regional average.
PVWatts' own documentation applies roughly 14% in combined system losses (soiling, shading, wiring, and similar factors), plus a separate inverter efficiency default around 96%.
Step 3: Apply the loss factor
Retained output = 0.86 × 0.96 ≈ 0.8256
For a 450W panel at 5 peak sun hours: 0.45 kW × 5 × 0.8256 ≈ 1.86 kWh/day per panel.
Step 4: Divide and round up
Panel count = daily energy requirement ÷ daily output per panel (always round up)
| Pump load | Runtime | Daily energy | Panels needed (450W example) |
|---|---|---|---|
| 500W | 8 hrs | 4 kWh | 3 panels |
| 1,000W | 8 hrs | 8 kWh | 5 panels |
| 2,000W | 8 hrs | 16 kWh | 9 panels |
These figures use illustrative assumptions. Your actual peak sun hours, panel wattage, and losses will shift the result. Before finalizing anything, check:
- Available roof or ground space for the array
- Panel orientation and tilt relative to true south
- Inverter input limits and the pump's startup surge
- Local electrical code requirements
- Whether the pump can safely run directly off the proposed system
Factors That Can Change the Panel Count
The same pump can need very different array sizes depending on where it sits and how the system is built.
Location, Weather, and Equipment Losses
Regional sun exposure can swing results considerably. NREL's resource-class data shows first-year solar capacity factors ranging from about 12.7% in lower-resource areas to 19.6% in the sunniest regions of the country, a meaningful gap for identical hardware.
Shade from trees, dirt accumulation, roof direction, snow cover, and panel aging (a documented median of roughly 0.5% output loss per year) all chip away at nameplate output too. Site conditions like these explain why two identical pumps can need very different arrays.
Grid-Tied, Off-Grid, and Equipment Compatibility
- Grid-tied systems offset pump electricity during the day but shut off during outages unless specifically configured otherwise.
- Off-grid systems need enough stored or backup energy to cover every hour the pump runs, including after sunset.
- Hybrid systems combine solar, grid, and storage, offering more flexibility but more complexity.
Standard AC pool pumps generally need a correctly sized inverter; purpose-built DC solar pumps instead use a dedicated controller. Either way, verify voltage, current, startup surge, grounding, and disconnects against the manufacturer's specifications before wiring anything together.
Should You Add Panels or Upgrade the Pump?

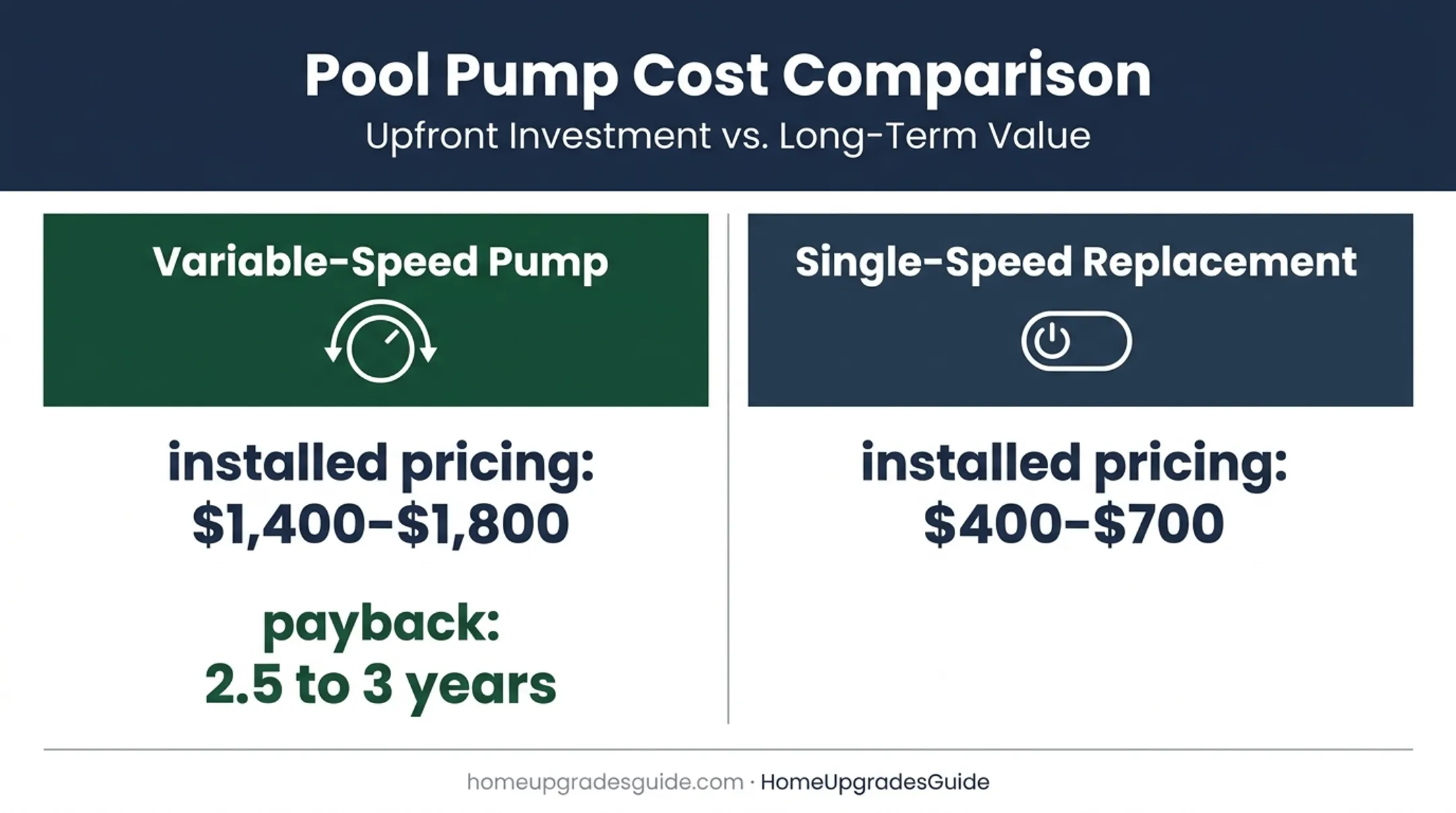

Sometimes it's cheaper to shrink the load than grow the array. A variable-speed pump costs more upfront, but historical DOE cost estimates put installed pricing around $1,400–$1,800 versus $400–$700 for a basic single-speed replacement, with payback often landing in the range of 2.5 to 3 years based on illustrative operating savings. Compare that cost against the price of a few extra panels before deciding which route makes more sense for your pool.
The rest of the pool setup still drives the math. Pool size, turnover requirements, plumbing resistance, filter condition, and attached equipment like water features or heaters all affect how hard and how long the pump needs to run, which feeds straight back into your energy-use calculation.
Solar Setup Options and Reliability
There are three practical ways to power a pool pump with solar, and each comes with its own trade-offs.
| Setup | How it works | Nighttime operation | Complexity |
|---|---|---|---|
| Grid-tied panels | Solar offsets daytime use; grid covers the rest | Grid-dependent | Lowest |
| Panels with battery storage | Solar charges a battery for use anytime | Battery-dependent | Moderate-high |
| Dedicated solar pump + controller | Matched PV and pump designed together | Sunlight-dependent unless backed up | Specialized |
Batteries aren't automatically necessary. If your pump can run entirely during daylight, grid-tied solar alone often does the job. Storage becomes relevant when you're off-grid or need filtration overnight.
Size the system around the pump's actual operating window, not a 24-hour assumption. And keep pool heating separate from this math entirely; heat pump COPs typically run 3.0 to 7.0, but heating is a distinct, usually much larger load than circulation.
Safety note: never wire solar panels directly into an existing AC pump without the proper inverter, protection equipment, permits, and professional design. Grounding, bonding, and disconnect requirements apply specifically to pool equipment under electrical code.
If comparing installation options sounds like a lot to sort out alone, HomeUpgradesGuide lets homeowners request free solar project quotes and review matches from local contractors. No phone call is required until you're ready to talk.
Conclusion
There's no single panel count that fits every pool pump. The right number comes from your pump's running watts, daily runtime, local solar production, realistic system losses, and operating schedule.
Work through the sizing steps in order:
- Calculate daily energy use
- Estimate panel production for your location
- Apply realistic loss factors, then divide and round up
- Check the count against inverter limits, wiring, and local code
Before committing to a system, have a qualified solar installer or electrician verify your numbers. Compare side-by-side proposals that spell out panels, inverter or controller, mounting, wiring, permits, batteries (if any), and expected operating conditions so you can choose with clear numbers in hand.
Frequently Asked Questions
How many solar panels do I need to run a pool pump?
It depends on your pump's wattage, daily runtime, local peak sun hours, panel wattage, system losses, and whether it needs to run after dark. Work through the calculation steps above for a number specific to your setup.
How much does it cost to run a pool pump for 24 hours?
Multiply the pump's kilowatt draw by 24 hours, then by your electricity rate. Using the EIA's national average of about 18.3 cents/kWh, a constant 1 kW pump would cost roughly $4.39 a day (though actual runtime and draw often differ from the horsepower rating).
Can solar panels run a pool pump at night?
Not without a battery or grid backup. A direct solar-only setup generates power only when sunlight is available, so nighttime operation requires some form of stored or backup energy.
Do I need an inverter to run my pool pump from solar panels?
Standard AC pumps generally need a properly sized inverter, while purpose-built DC solar pumps use a dedicated controller instead. Confirm voltage, current, and startup requirements with the equipment manufacturer either way.
Will solar panels run a pool pump on cloudy days?
Output typically drops in weaker sunlight, though not to zero since diffuse light still gets through. Oversizing the array, adding a battery, or keeping grid backup can help maintain reliable filtration on overcast days.
