These two variables shape your annual energy generation, how much power you use directly versus send to the grid, your utility savings, upfront installation costs, and even how long your roof holds up under the array.
The DOE's consumer guide to solar electricity identifies a south-facing roof as the most effective starting point for most American homes. But "most effective" doesn't mean "only option." Roof orientation, nearby shade, your utility's rate structure, battery plans, local climate, and available roof space can all make a different direction or angle the smarter financial choice.
This guide breaks down how to think through placement decisions, not just chase a theoretical maximum.
Key Takeaways
- South-facing panels typically lead annual output across the continental U.S.; other orientations can still work well.
- Match tilt to local latitude as a starting point; roofs rarely need a perfect angle.
- Shading and usable roof area often matter more than small direction or tilt deviations.
- Choose placement for max output, daytime self-use, battery charging, or rate-plan savings.
What Is Solar Panel Placement?
Solar panel placement is the combined decision of where panels go on a property, which compass direction they face, how steeply they're tilted, and how the array is laid out for safe, consistent sun exposure.
Three terms come up constantly during this process:
- Orientation (azimuth): the compass direction a panel faces, measured in degrees
- Tilt: the vertical angle of the panel relative to flat ground
- Array layout: how panels are spaced and arranged to avoid shading, obstructions, and access conflicts
Why Direction and Angle Affect Solar Production
Photovoltaic cells generate more electricity when sunlight hits their surface directly and consistently. The problem: the sun's position shifts constantly by time of day, by season, and by where you live on the map.
In most U.S. locations north of the equator, south-facing is the standard starting recommendation because it captures the most consistent sun exposure across a full day. One detail installers won't skip: true south isn't the same as the south your phone's compass shows you. Magnetic declination varies by region, so a proper site assessment corrects for it before anything gets mounted.

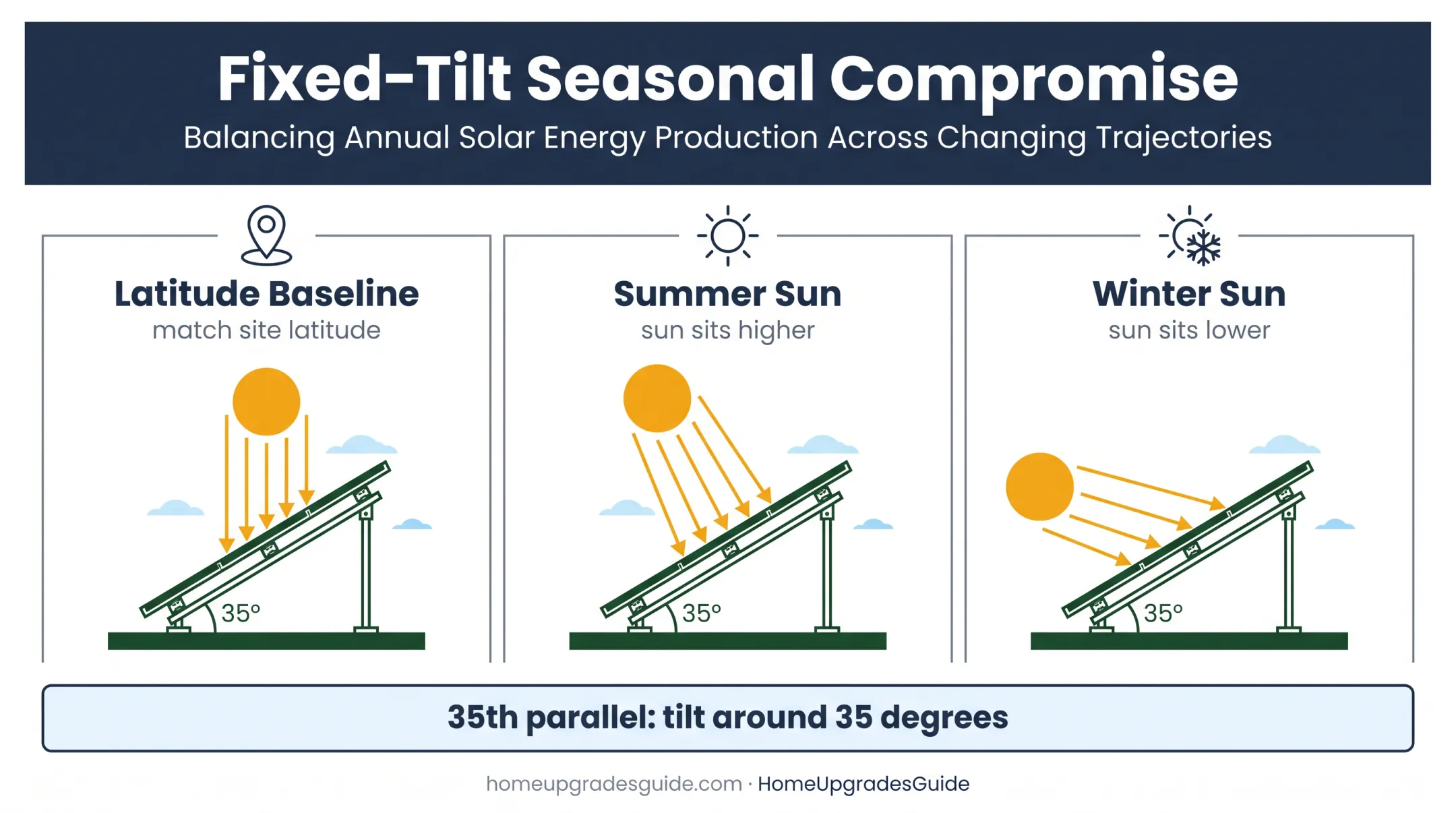

How Tilt Relates to Latitude
A widely used rule of thumb: tilt your panels to roughly match your site's latitude. A home near the 35th parallel, for example, generally does well with a tilt somewhere in that range for balanced year-round output.
It's a compromise by design. The sun sits higher in the sky during summer and lower during winter, so no single fixed angle perfectly matches every season.
EnergySage's research notes that residential roofs commonly tilt between 18 and 34 degrees, with roughly 15 to 40 degrees considered a reasonable output "sweet spot" across the continental U.S. Beyond latitude, installers also weigh:
- Snow: lower tilt angles can hold snow longer, delaying production recovery
- Rain: steeper angles may self-clean more effectively in wetter climates
- Wind exposure: site-specific wind load affects what tilt is structurally practical
- Roof pitch: matching the existing roofline often beats forcing a custom angle
Benefits of Correct Placement
Thoughtful placement connects directly to results homeowners actually care about:
- Higher total energy yield over the system's lifetime
- Reduced reliance on grid electricity
- Better alignment between production and household self-consumption
- Fewer losses from shade falling across the array
- More manageable long-term maintenance
- Stronger return on the installation investment
"Optimal" doesn't mean automatically maximizing midday output from a perfectly south-facing roof. It means matching the system design to your property and how your household actually uses electricity.
What to Consider When Choosing the Best Solar Panel Direction and Angle
Rather than picking a direction in isolation, compare total annual production, the timing of that production, installation complexity, roof safety, local utility rules, and your household's energy goals together.

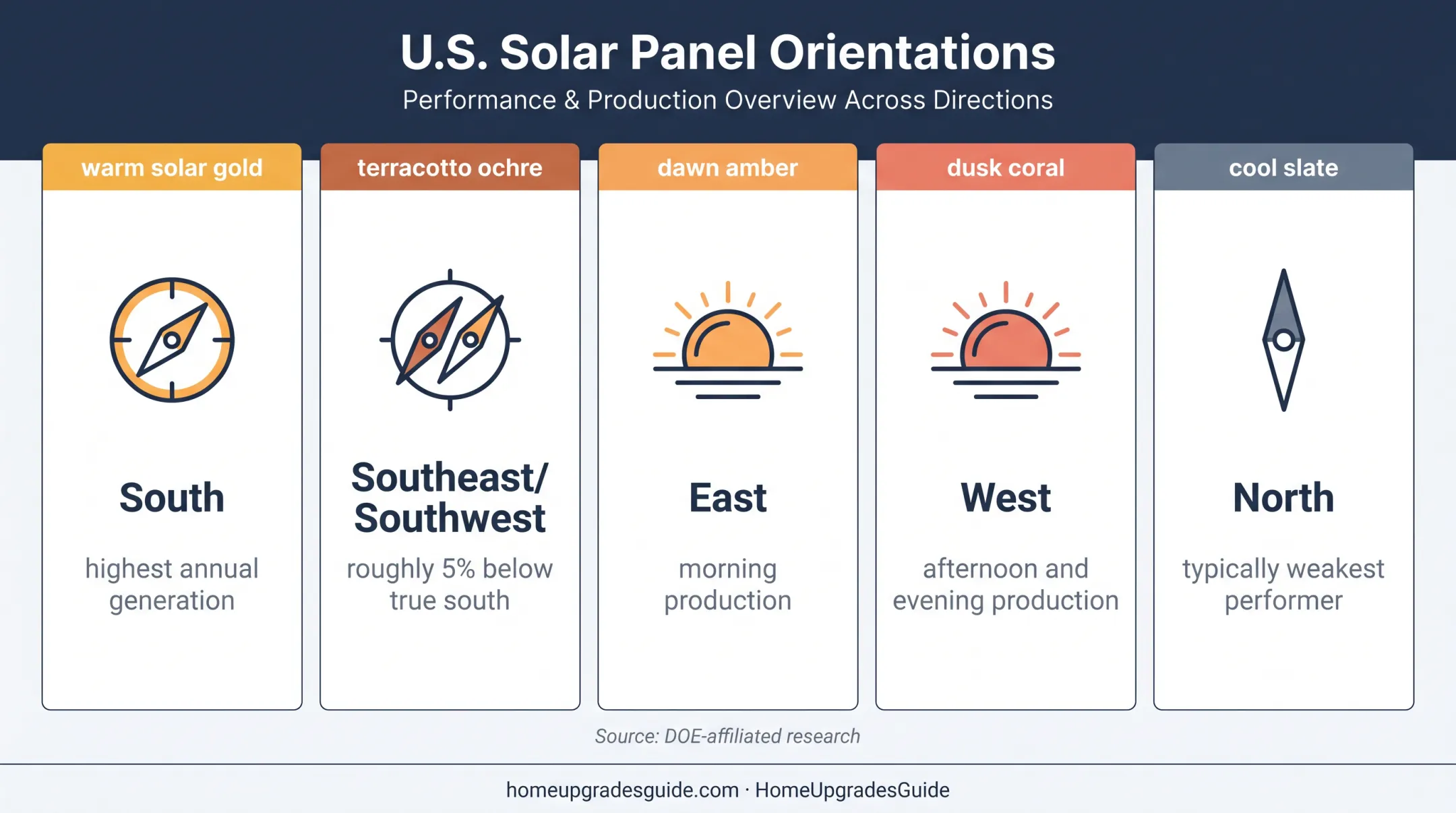

Best Direction for U.S. Homes
South-facing placement generally wins for maximizing annual electricity generation across the continental U.S. When a roof can't face due south, southeast and southwest orientations are typically the next best alternatives. Older DOE-affiliated research puts the performance gap at roughly 5% lower than true south, though actual results vary by site.
East and west orientations serve different purposes entirely:
- East-facing arrays lean into morning production, useful if your household uses more power early in the day
- West-facing arrays shift output toward afternoon and early evening, which can align better with peak household demand or certain utility rate windows
Avoid treating any single loss percentage as universal here. Actual output depends heavily on local modeling, roof pitch, and regional weather patterns.
North-facing placement is typically the weakest performer across much of the continental U.S. It's not automatically ruled out everywhere, though. Latitude, roof pitch, local climate, and site-specific modeling ultimately determine whether it's worth considering.
Best Angle and Roof Pitch
Latitude gives installers a starting point for a fixed-tilt design. From there, several factors might justify adjusting the angle:
- Seasonal electricity use: if winter production matters more to you, a steeper tilt can help
- Snow shedding: steeper angles help snow slide off faster
- Wind exposure: site conditions affect how much tilt the structure can safely handle
- Roof geometry: existing pitch often makes more sense than a custom rack
Small deviations from the "ideal" tilt usually aren't worth stressing over. Building a custom rack system just to hit a mathematically perfect angle can cost more than the extra generation delivers in return.
Flat roofs need extra planning. They typically require:
- Mounting structures with ballast or mechanical attachment
- Careful wind-load calculations
- Row spacing to limit shading between rows
- Attention to drainage and membrane protection
- Compliance with local building codes
Roof-Mounted vs. Ground-Mounted Placement
| Factor | Roof-Mounted | Ground-Mounted |
|---|---|---|
| Direction flexibility | Limited to roof planes | Fully adjustable |
| Installation cost | Generally lower | Generally higher |
| Land use | None required | Requires usable yard space |
| Maintenance access | Can be harder to reach | Easier to access and clean |
| Wiring distance | Shorter runs | Longer runs to the home |
| Visibility | Less visible from ground level | More visible |
Ground mounts make sense when the roof is structurally unsuitable, heavily shaded, too small for the desired system size, or when you simply want to set direction and angle independently of the house.
Roof mounts work better with limited yard space, when minimizing site disturbance matters, and when the roof is structurally sound with good sun exposure already.
Shading and Physical Obstructions
Shade doesn't need to come from a towering oak to hurt production. Common culprits include:
- Trees (including ones that haven't grown tall yet)
- Neighboring buildings
- Chimneys, dormers, and vents
- Skylights and satellite equipment
- Parapets on flat roofs
Shade patterns shift throughout the day and across seasons, which is exactly why a single visual inspection isn't enough. A professional shade study or recognized solar modeling tool gives a far more accurate picture than eyeballing it from the yard.
When shading can't be fully avoided, installers have options:
- Relocating panels to clearer sections of the roof
- Splitting the array across multiple roof planes
- Adding module-level power electronics to reduce shading-related losses
- Lawfully trimming problem vegetation
- Choosing a ground location instead
Household Energy Use and Utility Compensation
Here's where a lot of homeowners get surprised: the direction that produces the most total kilowatt-hours isn't always the direction that saves you the most money.
If your household uses more electricity in the afternoon, has a battery, or faces time-of-use utility rates, a west-facing system might deliver better financial value even with lower total output.
SEIA reports that mandatory net-metering rules exist in 34 states plus Washington, D.C. and Puerto Rico. On average, 20% to 40% of a system's output gets exported to the grid rather than used on-site.
Before finalizing orientation, a good installer should review:
- Your actual electricity bills and usage patterns
- Future loads like an EV or heat pump
- Battery storage plans
- Your utility's net-metering or net-billing rules
- Time-of-use rate periods
Ask for more than one modeled layout. Compare annual production, hourly production profile, self-consumption rate, export value, and payback timeline side by side before committing.
Installation, Spacing, and Long-Term Practicalities
Panel spacing isn't one universal number. It depends on mounting hardware, roof-edge setbacks, fire-safety access pathways, row-to-row shading, future expansion plans, and the manufacturer's specific installation requirements. Local fire code often dictates minimum pathway widths too.
Roof condition matters just as much as roof orientation:
- Structural loading capacity for the added system weight
- Wind and snow load requirements
- Drainage around mounting points
- Long-term panel access for cleaning and repairs
If your roof is nearing the end of its service life, it's worth repairing or replacing it before installation rather than pulling panels off again a few years later.
A proper site-specific design should document these details in writing before you sign anything:
- Azimuth and tilt
- Shade assumptions
- Projected annual production
- Equipment layout
- Required permits, warranties, and maintenance responsibilities
How HomeUpgradesGuide Can Help
Figuring out the right direction, tilt, and layout for your specific roof isn't something you should guess at. It takes a site visit, shade analysis, and engineering judgment that only a qualified local installer can provide.
What HomeUpgradesGuide does is simpler: we help you start that process faster. Share your address and a few basic details about your home and project (skip anything you're unsure about), and we match you with vetted local solar contractors who serve your area.
What you get:
- A free quote request that takes about two minutes
- No obligation, and no cold calls until you're ready
- No spam and no resold lists
- Control over which contractors you talk to, and when
From there, you compare the contractor matches and quotes that come back and decide who to contact.
If you're weighing a tricky roof, considering a ground mount, dealing with a shading issue, or just want a second opinion on a proposed panel layout, requesting free project quotes is a reasonable first step.
Keep in mind: not every contractor you're matched with will recommend the same design. No quote can guarantee a specific savings or production number before a real site assessment happens.
Conclusion
The best solar panel placement balances direction, tilt, shading, roof or land conditions, how your household actually consumes electricity, your utility's compensation structure, and installation cost.
South-facing panels at a latitude-informed angle remain a solid starting point for much of the U.S., but they're a starting point, not a rule. Depending on your roof, your rate plan, and your energy habits, an east-, west-, southeast-, or southwest-facing system might serve you better.
Before approving any layout, ask qualified contractors for:
- A site-specific shade analysis
- Production estimates
- A structural review
- Permitting details
- Side-by-side quotes you can compare
Frequently Asked Questions
How long do solar panels last?
Modern solar panels typically last 25 to 30 years, according to the Department of Energy. Defect warranties often cover 10 to 12 years, with performance warranties usually lasting 25 years. Heat, weather, and installation quality affect longevity.
Which is better for solar panels: east, west, or south facing?
South-facing generally produces the most electricity annually across most of the continental U.S. East-facing suits morning-heavy use, while west-facing often matches afternoon and evening demand. Shading and your utility's rate structure can change which option makes the most sense.
Is it better to put solar panels on the roof or on the ground?
Roof mounts typically cost less and require shorter wiring runs, while ground mounts offer full control over direction and angle when a roof is shaded, undersized, or structurally unsuitable. A site-specific design, not a general rule, determines which option fits your property.
How far apart should solar panels be placed?
Spacing depends on panel dimensions, roof or ground layout, row-to-row shading, fire-access setbacks, mounting equipment, and local building code. There's no universal spacing measurement. Follow your installer's engineered plan and the manufacturer's requirements.
What is the best angle for solar panels to face the sun?
Local latitude is the common starting point for a fixed-tilt system. Roof pitch, season, snow, wind exposure, shading, and your household's electricity-use patterns can justify adjusting from that baseline. Professional solar modeling gives the most accurate final angle for your property.
Where to place solar panels as per Vastu?
Vastu Shastra offers cultural and traditional placement guidelines, not engineering or electrical standards. Structural safety, sunlight access, shading conditions, local building codes, and a qualified solar designer's assessment should always take priority over traditional directional preferences.
