A qualified solar installer, licensed electrician, or structural professional (often a coordinated team) should handle the technical work. Homeowners can assist with planning, measurements, and non-electrical prep, but the load calculations, wiring, and inspections need licensed hands.
Get it wrong and you risk poor energy production, panel movement in high wind, water intrusion, electrical hazards, failed inspections, and voided warranties. This guide walks through feasibility checks, the installation sequence, and the validation steps that confirm the system is safe to operate.
Key Takeaways
- Confirm the frame, foundations, and anchors can handle panel, wind, snow, and weather loads.
- Assess sunlight, shading, orientation, and cable routing before you buy equipment.
- Treat structural work and electrical interconnection as separate licensed, permitted jobs.
- Pass visual, mechanical, electrical, and inspection checks before the system goes live.
Installation Guide for Installing Solar Panels on a Pergola
The project moves from site assessment and design through structural prep, panel mounting, electrical integration, inspection, and commissioning. It's more involved than a standard roof-mount job because the pergola may need reinforcement, new foundations, additional weatherproofing, and a longer electrical run back to the home's service panel.
Prerequisites and Safety Considerations
Before anything gets purchased, confirm the pergola can actually handle solar.
Structural suitability check:
- Inspect beam, rafter, and post condition for rot, corrosion, or cracking
- Check foundation type and look for settlement or movement
- Confirm the roof surface can accept mounting hardware without compromising integrity
- Flag any existing sagging, which often signals the structure is already near its load limit
Structural loads need formal review, not guesswork. The ASCE 7-22 standard covers dead loads, wind uplift, snow, rain, and seismic forces, but it's a design framework, not a one-size-fits-all number. Your local jurisdiction's adopted code and site-specific conditions (coastal wind zones, mountain snow loads) determine the actual figures an engineer will use.
Solar access matters more than a sunny afternoon suggests. Shade from trees, the house, or neighboring structures shifts across the day and across seasons. A pergola that looks clear in July might sit in shadow for half of December. Map obstructions throughout the year before committing to a layout.
Electrical feasibility covers:
- Panel configuration and inverter/microinverter selection
- Conductor routing and conduit sizing
- Disconnects, grounding, and rapid-shutdown equipment
- Outdoor-rated enclosures suited to sun and moisture exposure
- Existing service-panel capacity and the distance from pergola to home
Stop the project if you encounter an unstable structure, inadequate anchoring, extensive shade, unsafe roof access, damaged wiring, flooding risk, or a proposed electrical connection nobody has actually designed and approved.
Tools and Parts Required
Separate the shopping list into what's structurally required, what's electrically required, and what's genuinely optional.
| Category | Examples |
|---|---|
| Mounting system | Rails or approved attachment hardware, clamps, flashing/weather sealing |
| Electrical components | Conductors, conduit, grounding/bonding hardware, inverter or microinverters, disconnects |
| Safety & labeling | Rapid-shutdown equipment, warning labels, outdoor-rated junction boxes |
| Construction tools | Drills, torque wrenches, levels, fall-protection gear, lifting equipment |
| Testing equipment | Insulated electrical tools, voltage testers, insulation-resistance meters |
A listed mounting system (certified under standards like UL 2703) only confirms the rack and bonding hardware work together as tested. It says nothing about whether your pergola's beams or footings can carry the added weight. Don't treat a product certification as a substitute for a structural assessment.
On substitutions: only swap parts when the manufacturer, design professional, or code allows it. Improvised fasteners, indoor-rated wiring run outdoors, and unapproved mounting brackets are never safe shortcuts, regardless of how convenient they seem mid-project.

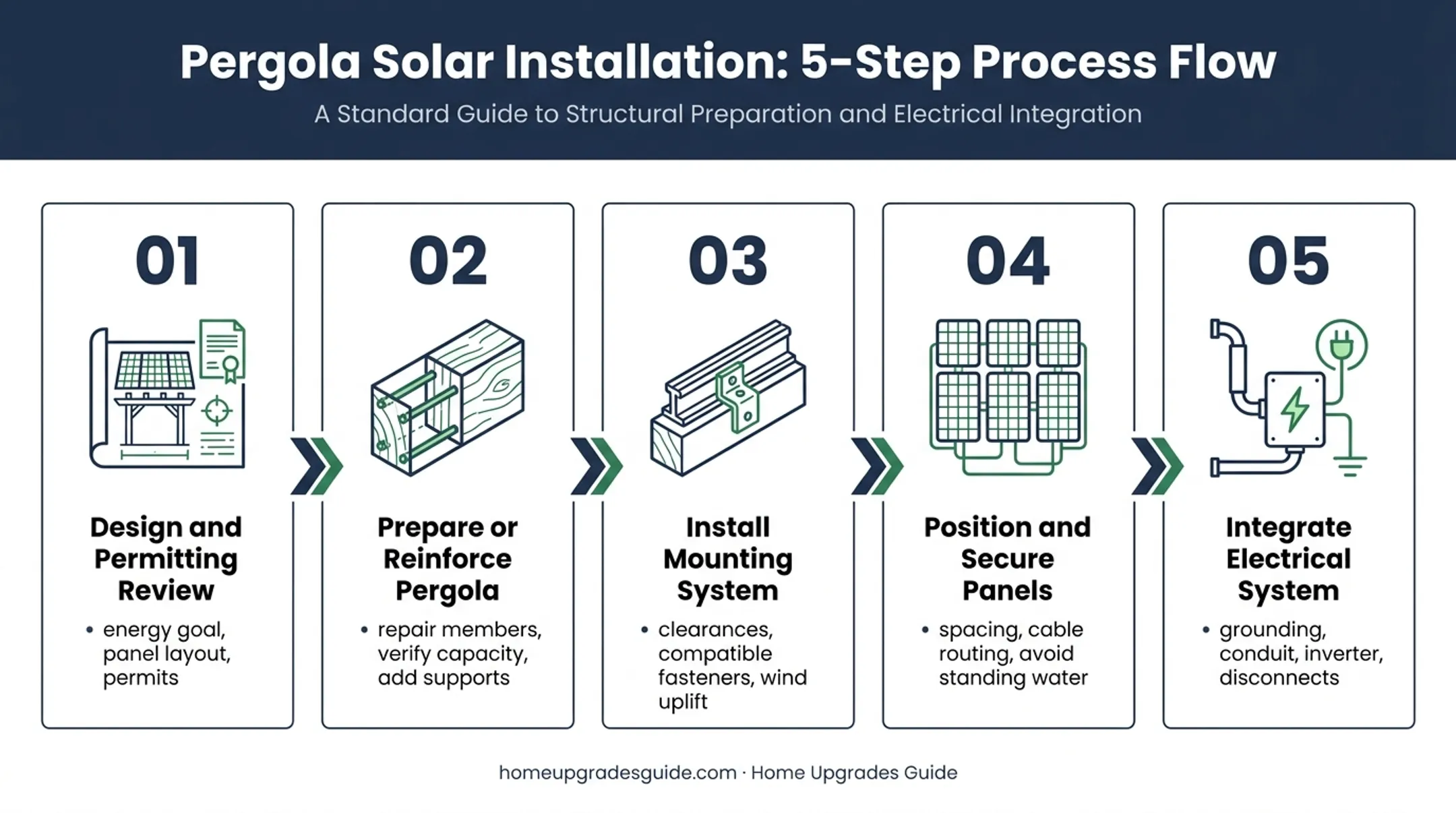

How to Install Solar Panels on a Pergola (Step-by-Step)
- Design and permitting review: Define your energy goal, measure usable surface area, select a panel layout, confirm orientation and pitch, and identify the electrical connection point. Submit for building and electrical permits, and start the utility interconnection process early since it often runs parallel to construction.
- Prepare or reinforce the pergola: Repair or replace deteriorated members, verify post and foundation capacity, and add engineered supports if the structural review calls for them. The mounting surface needs to be level and capable of receiving the specified hardware.
- Install the mounting system: Follow the approved design and manufacturer instructions exactly. Maintain required clearances, use compatible fasteners, and account for wind uplift forces. Never fasten into unsuitable parts of the frame just because it's convenient.
- Position and secure the panels: Work in the planned sequence, maintain manufacturer-specified spacing, and route cables away from sharp edges and standing water. Cables running loose beneath a pergola create trip and abrasion hazards for anyone using the space underneath.
- Integrate the electrical system: This step covers grounding and bonding, conduit and weatherproof penetrations, inverter installation, disconnects, service-panel connection, rapid-shutdown provisions, and labeling. It should be completed by qualified personnel and signed off through inspection and utility approval.
Each step depends on the one before it. Skipping the structural assessment to save time, for instance, means the mounting install happens on an unverified foundation — and that's where expensive problems start.
Post-Installation Checks and Validation
Before you rely on the system, run through three categories of checks.
Visual and structural review:
- Loose clamps or damaged modules
- Deflection in beams or posts
- Unsupported conduit or exposed conductors
- Incomplete seals or visible water paths
- Movement at anchors or foundations
Electrical commissioning:
- Polarity and voltage measurements
- Grounding continuity
- Disconnect operation
- Inverter status and rapid-shutdown function
- Monitoring configuration
Documentation to keep:
- Permits and inspection approvals
- Equipment serial numbers and warranty terms
- As-built drawings and shutdown procedures
- Maintenance instructions
Skipping documentation doesn't cause an immediate problem. The trouble shows up the day something fails and you need to prove what was installed, by whom, and under what warranty terms.
Common Installation Problems and Fixes
Panel or mounting movement. Usually traces back to undersized supports, incorrect fasteners, or a wind-load design error. Don't just tighten what you can reach. Have the structure and racking reassessed by a professional before the system runs again.
Water intrusion or damaged wiring. Leaks typically connect to open penetrations, poor conduit routing, or outdoor components that weren't actually rated for outdoor exposure. The DOE's weather vulnerability guide documents water entering at improperly sealed enclosure penetrations and mismatched conduit fittings. Isolate affected equipment and have qualified personnel correct the seals, drainage, and cable protection.
Low or inconsistent energy production. Before assuming equipment failure, rule out:
- Shade that wasn't accounted for in the original layout
- Incorrect orientation or tilt
- Debris accumulation on panel surfaces
- Connector faults or inverter alerts
- Mismatched module and inverter specifications
Distinguish a design limitation (the array was never going to produce more, given its orientation) from a post-installation fault (something changed or failed) before making changes. Swapping components to fix a shading problem wastes money and solves nothing.
Pro Tips for Installing Solar Panels on a Pergola Effectively
- Design the pergola and solar array together when possible. A purpose-built structure coordinates roof pitch, panel spacing, drainage, and wiring concealment far more cleanly than retrofitting panels onto something built for shade alone.
- Line up structural, solar, and permitting reviews before materials arrive. Schedule the install for calm, dry weather so panels and long components can be lifted and secured safely.
- Hire specialists for the technical work. Structural calculations, elevated installation, wiring, service-panel connections, inspections, and utility interconnection require licensed expertise. Homeowners can use HomeUpgradesGuide to request free project quotes and compare vetted local solar contractors without committing until they're ready.
- Keep a complete project file. Save the final layout, equipment specs, permits, inspection records, photos of concealed wiring, warranty terms, and contractor completion docs. Repairs, resale, and warranty claims go smoother with this on hand.
Conclusion
A solar-panel pergola can deliver outdoor shade and on-site electricity, but success depends on structural capacity, sunlight access, compliant electrical work, weatherproofing, and proper commissioning—not just the panel count on the quote.
Before you build, compare a safe retrofit with a purpose-built solar pergola and get professional assessments on both. HomeUpgradesGuide’s four-step process (pick the project, share details, enter your address, compare matches) connects homeowners with vetted local solar contractors for free, no-obligation quotes in under a minute.
Frequently Asked Questions
Can you attach solar panels to a pergola?
Yes, when the pergola is structurally suitable, properly anchored, exposed to adequate sunlight, and equipped with code-compliant mounting and electrical systems. A decorative or deteriorated pergola usually needs reinforcement or replacement first.
How many solar panels do I need to run a shed?
It depends on the shed's connected loads, operating schedule, available sunlight, panel output, inverter capacity, and whether batteries are part of the system. Calculate your daily energy demand first, then have a professional size the system accordingly.
Can I install solar panels on an existing pergola?
Possibly, but only after inspecting the frame, foundations, roof surface, condition, shading, orientation, and electrical route. Some existing structures handle the added load fine; others need reinforcement before a retrofit is safe or worthwhile.
Do I need a permit to install solar panels on a pergola?
Almost always, though exact requirements vary by state, municipality, utility, and electrical configuration. For example, San Antonio's solar pergola guidance requires engineer-prepared plans for new structures and a structural letter for retrofits. Confirm building, electrical, zoning, and interconnection requirements locally.
Is it better to build a new solar pergola or retrofit an existing one?
New construction lets you coordinate panel layout, drainage, and wiring from day one, which is often cleaner than retrofitting. Retrofits can work well if the existing structure's condition and foundation can genuinely support the added load. That's the deciding factor either way.
Can I install solar panels on a pergola myself?
Homeowners can handle planning and limited non-electrical prep, but structural engineering, elevated work, electrical connections, permitting, inspections, and utility interconnection need licensed professionals. These aren't areas where DIY shortcuts are worth the risk.
