This isn't a weekend DIY project. Wall-mounted solar combines structural engineering, weatherproofing, and electrical code compliance in ways that roof-mounted systems typically don't face in the same combination.
Done wrong, the consequences range from annoying to dangerous: shaded panels that underproduce, loose brackets that fail in a storm, water intrusion behind your siding, or a failed inspection that delays your utility interconnection. This guide walks through evaluating your wall, securing approvals, choosing hardware, and validating the finished system before you flip it on.
Key Takeaways
- Wall-mounted panels can perform well on sunny, structurally sound walls with an engineered mounting design
- A professional must verify wall construction, anchoring, electrical compatibility, and permits before work begins
- Vertical panel orientation often produces different annual output than tilted roof arrays
- Skipping final inspection or electrical testing risks safety, code violations, and voided warranties
Installation Guide for Wall-Mounted Solar Panels
The process breaks into four stages: preparation, mounting installation, electrical integration, and testing or inspection. Your total cost and timeline will depend on your wall material, how many panels you're installing, whether you need scaffolding or a lift, and what your local permitting office requires.
Prerequisites and Safety Considerations
Before anyone drills a single hole, the wall itself needs a close look. Brick, poured concrete, structural framing, stucco, and vinyl siding all respond differently to anchors, and some facade layers (like certain insulation or cladding systems) aren't rated to carry mounting loads at all.
A qualified professional should check for:
- Visible cracks, moisture damage, or structural deterioration
- Anchor pullout resistance and shear capacity for the specific wall material
- Wind uplift and, where applicable, seismic load paths into the building structure
- Whether a tilted wall-mount system would capture meaningfully more sunlight than a flush installation
Manufacturer guidance backs this up directly. Canadian Solar's current U.S. installation manual specifies that mounting design must be certified by a registered professional engineer.
The installer must also confirm the wall or facade can bear the system's load before proceeding, according to Canadian Solar's manual.
System design also needs to be locked down early:
- Confirm panel specs - dimensions, voltage, and compatibility with your chosen inverter or microinverters
- Map cable routes - from the array to disconnects, grounding points, and your home's electrical service
- Check service capacity - does your existing panel support the added load, or does it need an upgrade?

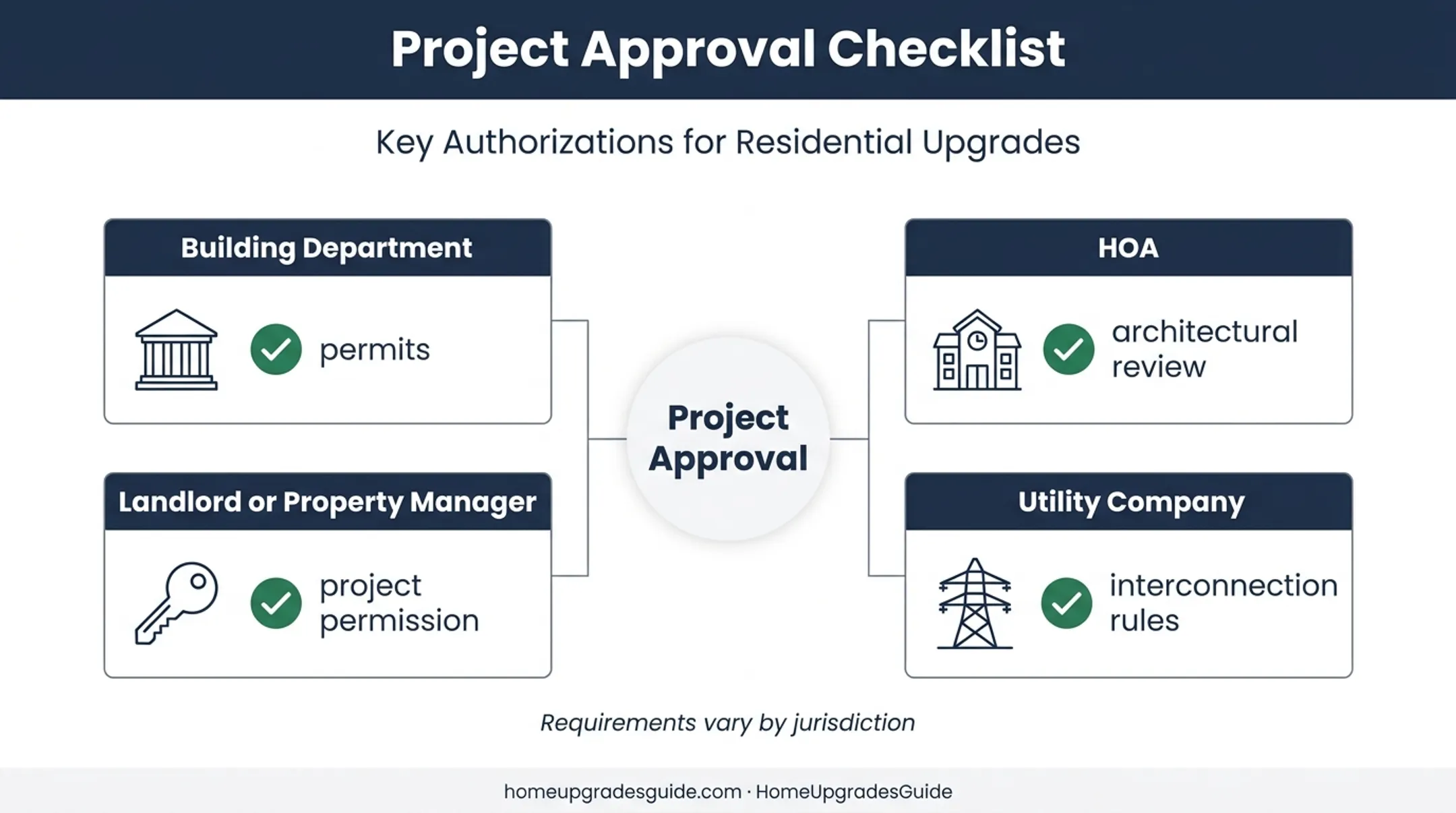

Finally, contact your local building department, HOA (if applicable), landlord or property manager, and utility company. Permits, architectural review, and interconnection rules vary by jurisdiction, and skipping any of them can delay or void your project.
Non-negotiables: Don't proceed on cracked or unstable walls, with uncertain buried utility lines, with unapproved structural modifications, or with electrical work outside a licensed installer's scope.
Tools and Parts Required
A typical wall-mounted system includes:
- Engineered brackets or rails with approved anchors and fasteners
- Panel clamps and compatible mounting hardware
- Flashing or weatherproofing at every penetration
- Grounding, bonding, conduit, and cable management
- Inverter, disconnects, and required labeling
Separate homeowner tasks from work that requires a professional:
Homeowner-appropriate tasks:
- Measuring wall space and sketching layout options
- Photographing the wall and surrounding obstructions
- Gathering utility bills to discuss system sizing with installers
Professional-only equipment:
- Torque tools calibrated to manufacturer specifications
- Masonry or structural-grade drilling equipment
- Fall protection and lift equipment for elevated work
- Electrical testing instruments for continuity, grounding, and polarity
Substitutions to hardware or fasteners are acceptable only when approved by both the mounting-system manufacturer and the panel manufacturer, and only when compatible with your specific wall substrate and local code.

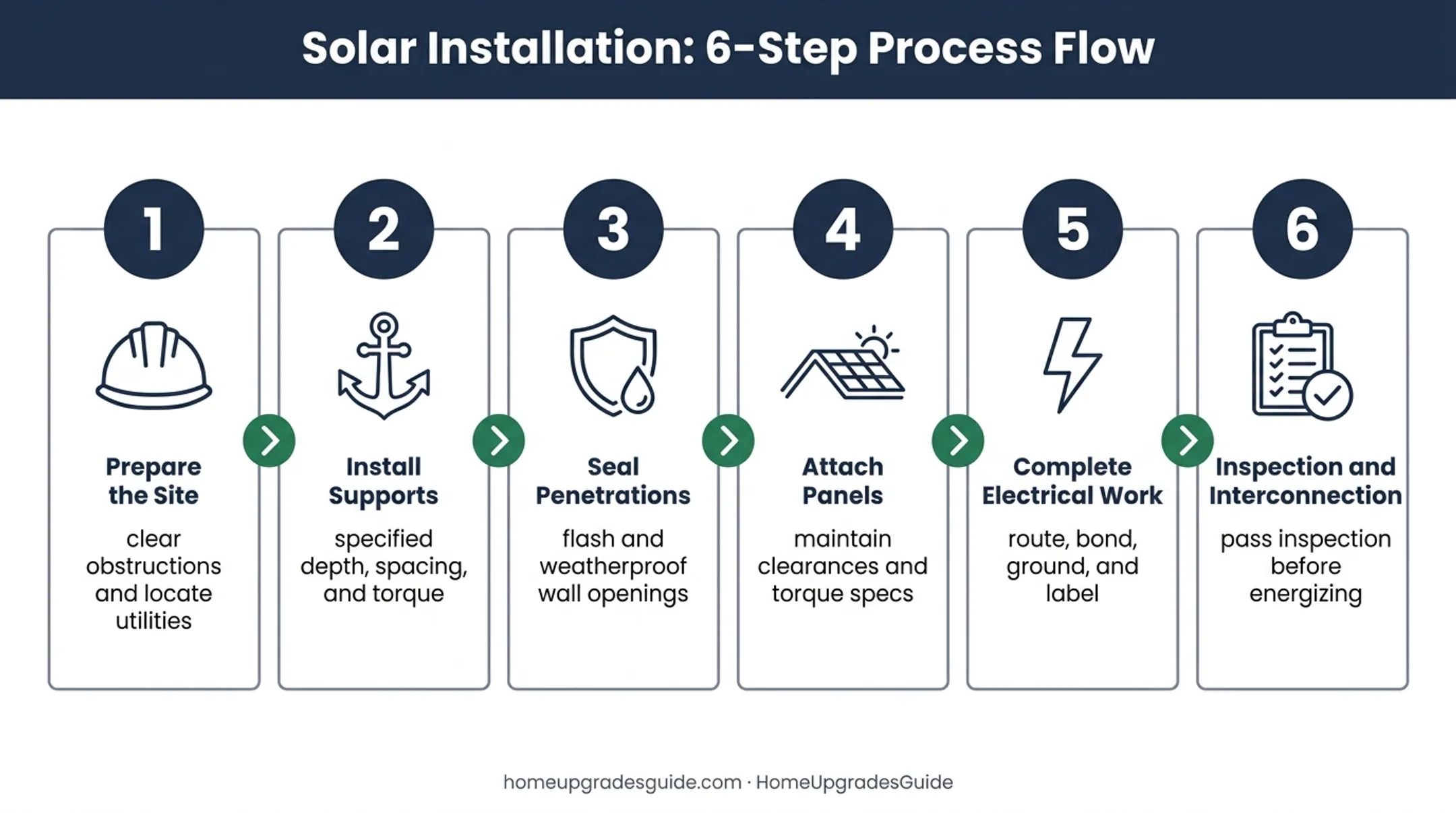

How to Install Wall-Mounted Solar Panels Step by Step
A qualified installer documents the wall, array layout, cable routing, and anchor pattern before drilling, following the approved engineering drawings rather than estimating fastener placement on-site.
- Prepare the site - clear obstructions, confirm final measurements, locate hidden utilities and wiring, protect the facade finish, and set up safe access equipment
- Install mounting supports - anchor rails or brackets into the structural substrate at the specified embedment depth, spacing, and torque, keeping everything level
- Seal penetrations - flash and weatherproof per the wall assembly requirements, taking care not to trap moisture against siding or the water-resistive barrier
- Attach panels - use compatible mid-clamps or end-clamps, maintain manufacturer clearances, and tighten to documented torque specs
- Complete electrical work - route protected cables, connect the inverter or microinverters, bond and ground the array, and install required disconnects and labels
- Schedule inspection and interconnection - don't energize the system until it has passed required inspection and utility sign-off
Rapid-shutdown provisions in the National Electrical Code address PV circuits installed on or in buildings specifically to reduce shock hazards for emergency responders, according to the NEC rapid-shutdown rules reproduced in the International Solar Energy Provisions. Confirm which NEC edition your jurisdiction has adopted before finalizing your electrical design.
Post-Installation Checks and Validation
Once everything is mounted and wired, a visual and electrical check confirms the work before the system goes live. Look for:
- Loose clamps, uneven rails, or cracked panels
- Damaged seals or unsupported cable runs
- Exposed conductors or sharp edges
- Any evidence of water intrusion behind the facade
Qualified personnel should also test continuity, polarity, grounding and bonding, inverter status, and monitoring functionality using manufacturer-specified procedures. Compare early production data against design expectations, but account for weather, seasonal shading, and normal commissioning variance before concluding anything's wrong.
Keep every document the project generates. Inspection records, permits, equipment manuals, warranties, as-built diagrams, and photos of concealed work (the sealed penetrations, the hidden anchor points) all matter later for repairs, resale, or warranty claims.

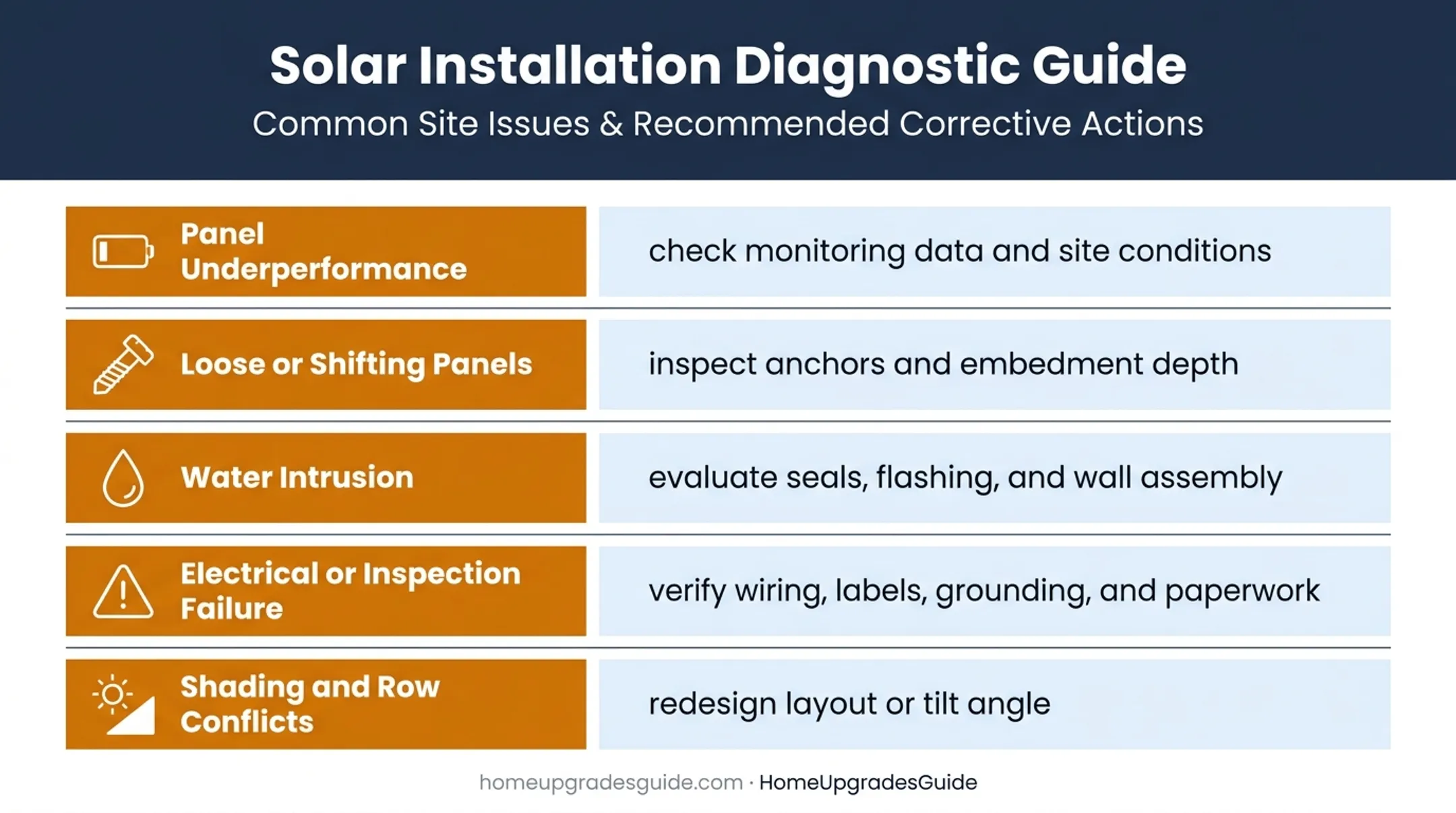

Common Installation Problems and Fixes
Most wall-mounted solar issues trace back to a handful of root causes. Here's how to diagnose them.
Panel underperformance: Orientation, seasonal shading, vertical tilt angle, dirty modules, mismatched equipment, or a commissioning error can all drag output down. Check monitoring data first, then get a professional site assessment rather than assuming the panels themselves are defective.
Loose or shifting panels: Undersized anchors, incorrect embedment depth, improper fastener spacing, or a wall material that wasn't suited to the chosen anchor type are the usual culprits. Shut the array down and get a professional inspection before attempting to re-secure anything yourself.
Water intrusion or facade damage: Unsealed penetrations, incorrect flashing, or drilling through cladding that wasn't designed for it often open the path for moisture. Stop further work immediately and have the wall assembly and weatherproofing evaluated by someone familiar with your specific siding or masonry type.
Electrical or inspection failure: Incorrect wiring, missing labels, grounding problems, or incomplete utility paperwork are common triggers. Leave diagnosis and repair to a licensed electrician or solar contractor.
Shading and row-layout conflicts: Nearby structures, wall projections, or panels spaced too tightly can cut output significantly. After a proper shade analysis, redesign the layout or tilt angle rather than adding more panels to compensate.
Pro Tips for Installing Wall-Mounted Solar Panels Effectively
A few habits separate smooth installations from frustrating ones:
- Schedule around safe weather and access. Coordinate structural, electrical, inspection, and utility steps so the array isn't left exposed or half-commissioned for weeks.
- Use wall-specific mounting hardware. Roof racking adapted for vertical walls without manufacturer confirmation can fail on drainage and wind load.
- Vet contractors thoroughly. Confirm wall-installation experience, itemized scope, permit responsibility, structural assumptions, and workmanship coverage.
- Keep a complete project file. Final design, permits, inspection approval, equipment serial numbers, warranty terms, electrical diagrams, and photos all belong in one place.
If you're still comparing whether wall-mounted solar makes sense for your home, requesting a few quotes is a low-pressure way to get real numbers. HomeUpgradesGuide lets homeowners request free project quotes and review matched local contractor options, without committing to a phone call until you're ready.
Conclusion
Wall-mounted solar can open up usable installation space when roof orientation, condition, or square footage limits what you can do up top. But its real-world performance still comes down to sunlight exposure, tilt angle, shading, and how carefully the system was engineered for your specific wall.
Installation quality isn't cosmetic here. It directly affects structural safety, electrical reliability, weatherproofing, and whether your system passes inspection the first time.
Before any work begins:
- Complete a proper site and structural assessment
- Compare wall-mounted options against roof or ground-mounted alternatives
- Get itemized quotes from qualified local professionals
HomeUpgradesGuide's quote request takes about two minutes and connects you with vetted local contractors who reach out on your schedule, not theirs.
Frequently Asked Questions
Do wall-mounted solar panels work?
Yes, when securely installed on a suitably sunny wall, they generate usable electricity. However, vertical orientation, shading, and wall direction can reduce output compared with an optimally tilted roof system.
Are wall-mounted solar panels suitable for every home?
No. Suitability depends on wall construction and condition, available solar exposure, access for installation, local regulations, and whether the electrical system can be safely connected.
Do wall-mounted solar panels need building permits in the US?
Requirements vary by state, municipality, building type, and HOA. Some facade-specific restrictions persist even where North Carolina's facade law allows certain covenants, so confirm permits and interconnection rules locally before installing.
Can I install wall-mounted solar panels myself?
Basic planning and site prep are fine for homeowners, but drilling into structural walls, working at height, grounding, wiring, and commissioning all require qualified professionals.
Are wall-mounted solar panels more expensive than roof-mounted panels?
Cost depends on wall access, mounting hardware, engineering review, lift or scaffolding needs, and electrical work. An itemized comparison from a local installer is more useful than a general price claim.
How do I choose a contractor for wall-mounted solar installation?
Compare contractors on relevant wall-installation experience, licensing, insurance, structural and electrical scope, permit handling, and warranty terms. Getting a few written quotes side by side makes the differences clear quickly.
